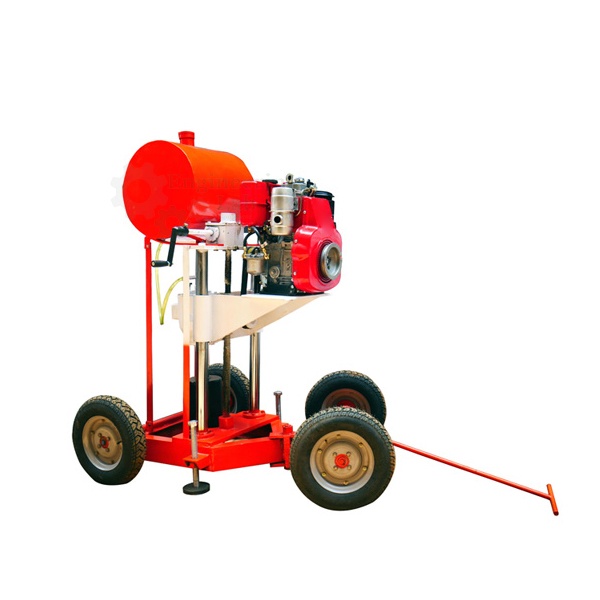

Pavement Core Drilling Machine
Product Code : EL-BTLE-10954
Quick Answer: The Pavement Core Drilling Machine drills test cores and holes from bridges, roads, and airport runways using a double precision bit on a screwed spindle mounted between two vertical support columns, providing accurate, constant drill pressure with minimum core chipping. It is powered by a 5 HP petrol or diesel engine with a pulley mechanism for minimum vibrations, and is supplied with a strong rigid metal base with leveling facility suitable for vertically down coring; bit diameter ranges from 25mm to 150mm, maximum core depth is 700mm, and drill speeds of 475 rpm and 800 rpm are supported.
The Pavement Core Drilling Machine comprises two vertical support columns with a screwed spindle that help carry the Drill head/Engine assembly. A double precision bit advances with the screwed spindle to provide accurate and constant drill pressure along with minimum core chipping and long bit life. This instrument is powered by a petrol/diesel engine and is used to drill test cores or holes in bridges, roads, airport runways, etc. The 5 Hp diesel or petrol engine with pulley mechanism allows minimum vibrations, and the assembly is supplied with a strong rigid metal base with leveling facility, which is suitable for doing vertically down coring applications.
Specification:
A Bit Diameter Varying from 25mm to 150mm.
A maximum depth of core which can be achieved is 700mm.
A Screwed Spindle of 20mm dia.
A Water Tap of 12mm.
A 475 rpm and 800 rpm drill speed is supported.
A Guide Shaft of 50mm dia.
Drill Wrenches, Water Tank, and Leveling Pads are included.
Comes with 5 HP (horsepower) petrol or diesel engine.
