Concrete Cover Meter
Product Code : EL-CTLE-10308

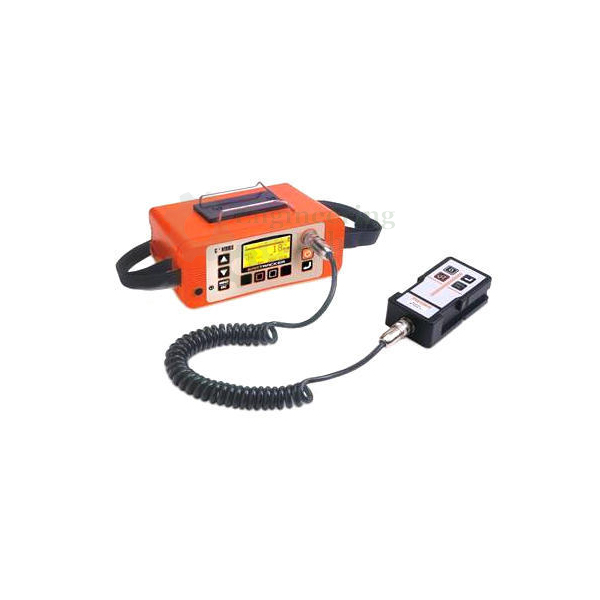

Concrete Cover Meter (code EL-CTLE-10308) is a pulse induction instrument that measures how thick the concrete cover is over steel reinforcement and metal pipes, and locates rebar, showing its orientation and diameter. It is housed in a waterproof IP 65 case with probe storage and a rechargeable battery pack, and its standard search head detects a 40 mm bar to about 95 mm depth and an 8 mm bar to about 70 mm depth over a 120 × 60 mm sensing area.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Technique | Pulse induction |
| Measurements | Concrete cover over steel reinforcement bars and metal pipes; location, orientation and diameter of reinforcement bars (rebar) |
| Case | Waterproof, IP 65, with probe storage |
| Battery | Rechargeable battery pack, charged inside or outside the gauge |
| Display | Display screen showing the readings |
| Expansion | Basic unit can be completed with optional probes for other determinations |
| Standard search head | 40 mm dia. bar up to 95 mm depth (approx.); 8 mm dia. bar up to 70 mm depth (approx.); sensing area 120 × 60 mm |
| Supplied with | Main unit, standard search head, shoulder strap, earphone, PC cable, battery pack and charger, carry case and instruction manual |
| Standards | BS 1881:204 |
| Product code | EL-CTLE-10308 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Concrete Cover Meter Used For?
Concrete cover protects reinforcement from corrosion and fire, so its depth is checked on new work and when existing structures are assessed, together with where the bars run. The operator moves the search head over the concrete surface; the pulse induction signal responds to the steel below, and the screen shows where a bar lies, which way it runs and how deep it is, with the earphone available while scanning. Readings can be passed to a computer over the PC cable. With the standard head, 8 mm bars are picked up to about 70 mm depth, and optional probes widen the range of work. The standard listed for it is BS 1881:204.
What to Specify When Ordering
- Quantity — the number of cover meters required.
- Optional probes — any of the optional probes needed in addition to the standard search head.
Frequently Asked Questions
What can the cover meter measure?
Cover thickness over steel reinforcement bars and metal pipes is its main reading, and it also finds where the bars are, which way they run and what diameter they have.
How deep can the standard search head find bars?
The standard search head identifies a 40 mm diameter bar to about 95 mm depth and an 8 mm diameter bar to about 70 mm depth, with a sensing area of 120 × 60 mm.
What measuring principle does the cover meter use?
The meter works by pulse induction, sending pulses from the search head and picking up the response of steel bars or metal pipes beneath the concrete surface.
Is the cover meter suited to wet site conditions?
The gauge is housed in a waterproof case rated IP 65, with storage for the probe, and its battery pack can be recharged inside or outside the gauge.
What comes in the cover meter kit?
In the kit are the main unit and standard search head, with a shoulder strap, an earphone, a PC cable, the battery pack with its charger, a carry case and the instruction manual.
Which standard is listed for cover measurement?
The standard listed for it is BS 1881:204, and further optional probes can be added to the basic unit for other determinations.
OEM Manufacturer
The Concrete Cover Meter is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
