L-Box Apparatus
Product Code : EL-CTLE-10299

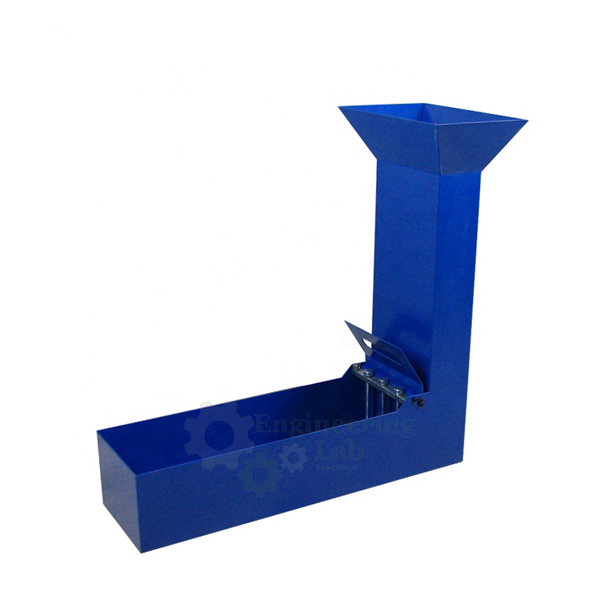

L-Box Apparatus (code EL-CTLE-10299) is an L-shaped box for measuring how readily freshly mixed self compacting concrete passes a row of 12 mm diameter bars, given as its passing ability rate. The gap between the bars can be set at 41±1 mm or 59±1 mm, the vertical and horizontal hoppers are laid out so they can be cleaned out after use, and the box is supplied with a filling hopper and base.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining the passing ability rate of freshly mixed self compacting concrete |
| Shape | L shape box with vertical and horizontal hoppers |
| Cleaning | Designed so the vertical and horizontal hoppers can be cleaned |
| Bars | 12 mm diameter |
| Bar gap | Can be set at 41±1 mm or 59±1 mm |
| Supplied with | Filling hopper and base |
| Standards | EN 12350-9 |
| Product code | EL-CTLE-10299 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the L-Box Apparatus Used For?
Self compacting concrete is placed without vibration, so it must flow under its own weight through the gaps between reinforcing bars without blocking or separating. Concrete is poured into the vertical hopper through the filling hopper and allowed to stand; when the gate is opened it flows through the row of 12 mm bars into the horizontal section. The heights of concrete at the two ends are then compared to give the passing ability ratio, with the bar gap set at 41±1 mm or 59±1 mm to suit the reinforcement spacing being represented. The standard listed for the L-box is EN 12350-9.
What to Specify When Ordering
- Quantity — the number of L-boxes required.
Frequently Asked Questions
What property of SCC does the L-box measure?
It gives the passing ability rate of fresh self compacting concrete, meaning how well the mix moves through closely spaced bars without blocking.
What bar spacings can be used in the L-box?
The distance between the 12 mm diameter bars can be set at either 41±1 mm or 59±1 mm, depending on the reinforcement spacing to be represented.
What is supplied with the L-box?
The L shape box apparatus comes complete with a filling hopper and a base, in addition to its vertical and horizontal hoppers.
How is the L-box cleaned after a test?
The L shape box is designed so that its vertical and horizontal hoppers can be reached for cleaning once the concrete has been emptied out.
Which standard is the L-box listed under?
EN 12350-9 is the standard listed for it, and the box is used on freshly mixed self compacting concrete flowing between 12 mm bars.
What information helps with an export quotation for the L-box?
Include the number of L-boxes, the destination country and port or city, the delivery terms such as FOB or CIF, the packing requirements and any tender reference.
OEM Manufacturer
The L-Box Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Concrete Testing Equipment
- Longitudinal Compressometer — two-ring cylinder compressometer with 0.002 mm dial gauge and anvil zero setting in wooden case.
- Concrete Test Hammer — 2.207 Nm surface hardness test hammer for in-place concrete strength assessment, 10 to 70 N/mm².
- Tamping Rod — steel rod, 16 mm diameter and 600 mm long, rounded at both ends for cube compaction.
- Pile Echo Tester Concrete — low strain integrity tester checking concrete or wood piles for major cracks and voids.
- Concrete Flow Table Test Set — hinged 700 × 700 mm double steel table with stainless steel cone for concrete flow.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of L-box sets required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
