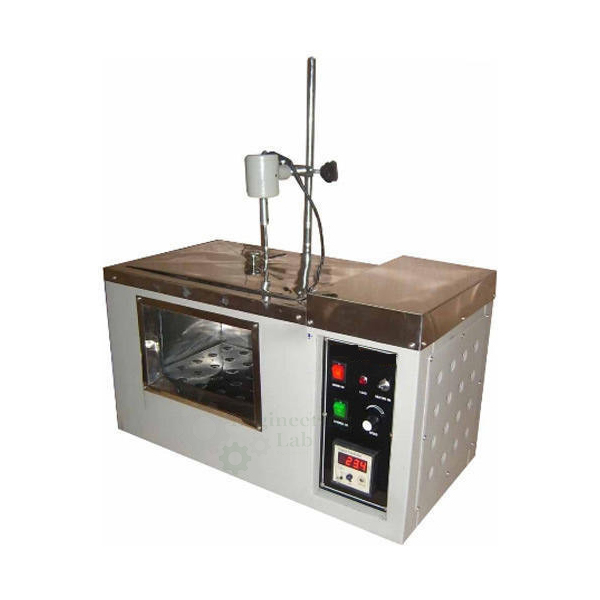

High Precision Water Bath
Product Code : EL-LEAA-11016
Quick Answer: The High Precision Water Bath is a double-wall constructed unit with a flat Stainless Steel lid that prevents evaporation, a glass window to view samples, and mineral wool insulation between the outer body and the Stainless Steel-304 grade inner tank; the outer chamber is powder-coated Mild Steel. It offers a temperature range of Ambient +5°C to 95°C with a stability of ±0.2°C (PT-100 sensor), a capacity of 8 to 30 Liters, and heating wattage of 1.5/2.0 KW. It comes with a stirring arrangement (Stainless Steel FHP motor stirring shaft with a front-panel speed regulator) for uniform temperature, runs on Single Phase 220/230V AC (±10%), and measures 430 x 240 x 265mm.
The High Precision Water Bath features double wall construction with a flat Stainless Steel lid that prevents evaporation, a glass window on one side to see samples placed in the bath, and mineral wool insulation filling the space between the outer body and stainless steel tank. It is fitted with a drain plug for easy cleaning.
Fault Finding and testing immersion heaters.
The temperature range is up to 95°C, with control temperature within an accuracy of ±0.2°C.
Stainless Steel-304 grade of inner tank and lid made
Mild Steel duly powder coated of Outer chamber
Microprocessor Based PID Digital Temperature and maintains maximum temperature accuracy indicator cum Controller.
The unit is supplied with a stirring arrangement consisting of a Stainless Steel FHP motor stirring shaft for continuous stirring, maintaining uniform temperature throughout; a speed regulator is provided on the front panel to control the stirrer. It runs on a Single Phase AC Supply of 220/230V AC, ±10%.
Technical Parameters :
Capacity: 8 to 30 Liter
Heating Walls: 1.5/2.0KW
Temperate Range: Ambient +5°C to 95°C
Temperature Stability: ± 0.2°C
Temperature Sensor: PT-100
Dimensions: 430x 240x 265mm
