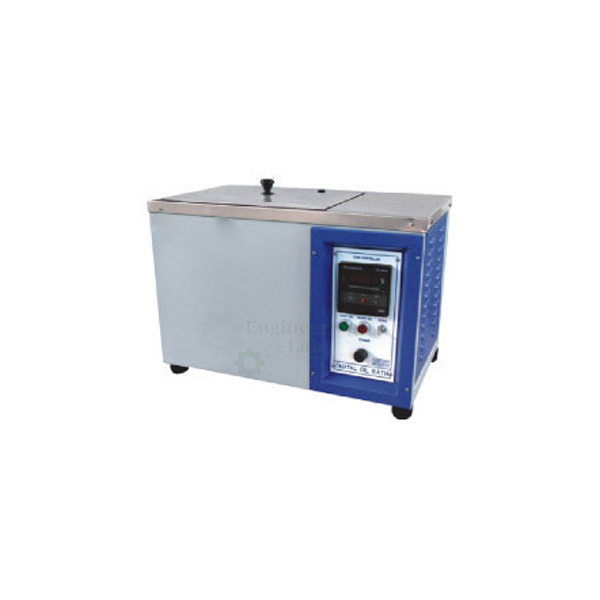

High Temp. Oil Bath
Product Code : EL-LEAA-10997
Quick Answer: This High Temperature Oil Bath is used for oxidation stability testing on oil and grease and for calibrating thermocouples and thermometers, heating from ambient temperature up to 250°C with a stability of +-1°C/2°C or better. It has a 304-grade stainless steel (argon-welded) bath to prevent leakage at high temperature, ceramic-blanket mineral insulation to reduce heat loss, Kanthal oil heaters for uniform heat throughout the chamber, a 1/20 HP stirrer for uniform liquid circulation, and a CRC/mild steel powder-coated housing running on single-phase 220/230V AC power.
Precise for oxidation stability Test on Oil and Grease
Cera blanket Insulated Better Mineral to avoid loss of heat and gives better result.
Heavy duly polish steel sheet or hair line 304 grade argon welded to avoid leakage at high Temp. during Test.
Safe handling during test for Diffuser plate
Kanthal 1 special Steeliness steel quality Oil Heaters are fitted to cover oil Bath and gives uniform/ heat Temp. Throughout the Chamber.
Microprocessor based PID Temperature indicator full feature digital temperature Controller Cum Indicator Controller can be made on Customer request
Uniform circulation of liquid and Temp. Bath for the best quality 1/20 HP stirrer is fitted on the back side.
Useful for Calibration of Thermocouple and Thermometer.
Technical Parameters :
Control Panel: mains Switch and Indicator Temperature
Digital Setting: 1°C
Digital Resolution: 1°C
Duty Cycle: Continuous
Housing Material: CRC or Mild Steel sheet duly powder coated
Temperature: Ambient to 250 oC
Temperature Stability: +-1°C/ 2°C or better
Power Consumption: Single Phase AC Supply 220/230V AC supply ±10%
Optional: All Top Steeliness Sheet body having Magnetic Stirrer without hot plate having different dimension
Interior: Polish/ Hair line S.S. 304 grade As per requirement
