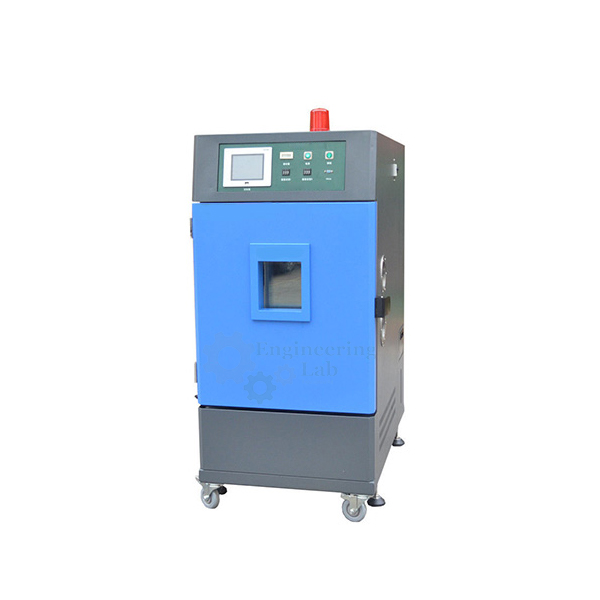

Humidity Chamber
Product Code : EL-LEAA-10526
Features :
Double walled finish
Outside mild steel powder coated as well as puff insulation support
Stainless steel perforated adjustable shelves
Temperature control from 10oc to 60� c (+/- 5%)
Humidity control from 55% to 90% (+/- 5%)
Digitally controlled interface
Coming with wheel support for mobility
Provides working on 220 v ac supply
Chamber comprising highly polished stainless steel sheet finish
Inner compartment featuring stainless steel adjustable shelves
Quality motor blower for forced air circulation
Precision air ducting support for allowing positive air flow
System designed to maintain constant temperatures in chamber
For avoiding thermal loss, system comes with puff insulation provided between inner and outer walls
Equipment fitted with hermetically sealed compressor with CFC free refrigerant
2 doors support with inner full length transparent door
Available in sizes of 455 x 455 x 710, 605 x 605 x 605, 605 x 605 x 910mm (wxdxh)
Sturdy hinge support and magnetic gasket provided for double walled main door
Automatic temperature control provided through digital temperature controller and indicator
System supporting PID with pt. 100 sensor
Technical Specifications :
MOC Outer: Mild Steel Powder Coated
MOC Inner: Stainless Steel
Safety: Thermostat
Insulation: PUFF
Temp.: 10oc to 60� c.
Humidity: 55% to 90% +/- 5%
Type: Forced Convection Type
Compressor: Hermetically Sealed Compressor
Temperature Control: Microprocessor Based Digital Temperature Controller Cum Indicator
Temperature Range: 5oc – 60oc +/-1oc
Humidity Creation: By Steam Injection
Humidity Controller: Digital Humidity Indicator-Cum-Controller.
Humidity Range: 5% Above Ambient From 55% – 95%RH±3%RH At Cool Temperatures
Inner Size (WxDxH): 455 x 410 x 610mm, 505 x 415 x 830mm, 570 x 550 x 875mm, 650 x 580 x 900mm
Electric Supply: 220/230V AC, 50/60Hz
Applications :
Cosmetics Industry
Plant / Insect Growth
Packaging Industry
