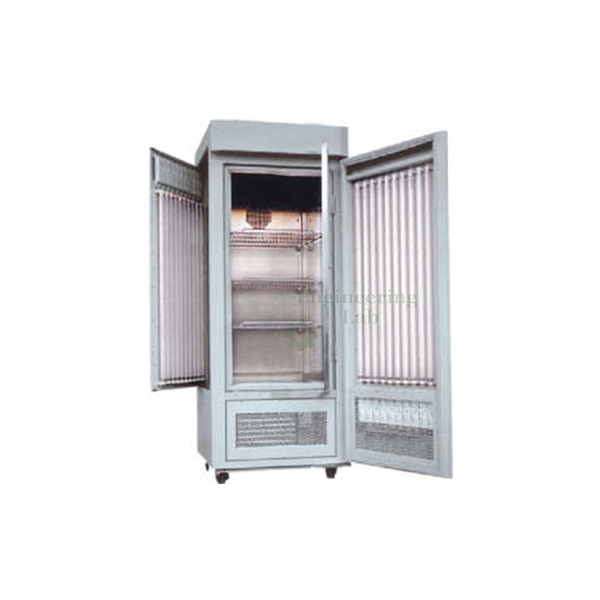

Plant Growth Chamber (Refrigerated)

Product Code : EL-LEAA-11023

Quick Answer: The Plant Growth Chamber (Refrigerated) features a CRC or Mild Steel powder-coated housing with a Double Colour gate grill and top, a Stainless Steel 304 grade interior with perforated trays, and a Kirloskar/Tecumseh compressor. It offers a temperature range of 10°C to 50°C with a stability of ±1°C, and digital humidity control with safety controls across a humidity range of 60-95% (±3%). It runs on a Single Phase 220/230V AC Supply (±10%, 50Hz), operates on a continuous duty cycle, and an RS 232 Communication Interface is available as an optional feature.

Refrigerated Incubation and freezing unit.

Mild Steel double door powder Coated and inner full size acrylic sheet door or clear Perspex to observe the Test Process inside the chamber keep un-interrupted Temperature.

Angle Castor wheel iron frame for easy movement.

Puf Insulated to keep the surface Temp. of body comfortable and Avoid loss of heating and Cooling.

Stainless Steel 304 grade polish interior corrosion having long life operation and adjustable shelves.

Kanthal tubular heater is fitted for better accuracy.

Fitted cooling and Heating 1/70 HP motor for humidity spray or injection control.

Inside the chamber for uniform Air Circulation.

Used for 2 Sides Glass window.

Bulb minimum influence from natural light and reduce Temp. rise of the chamber resulting from the light, Timer for Day and Night, Illumination is controlled by 2 Nos. 24 Hrs. Cyclic Timer.

Digital Safety system are provided.

Kanthal tubular immersion heater are provided for humidity injection for better results and long life.

Technical Parameters :

Housing Material: CRC or Mild Steel duly Powder coated sheet, Double Colour gate grill and Top

Humidity Control: Digital with safety controls

Humidity Range: 60-95% ±3%

Optional: RS 232 Communication Interface.

Duty Cycle: Continuous

Interior: Stainless Steel 304 Grade and perforated trays

Compressor: Kirloskar/ Tecumseh Model

Temperature Stability: ±1°C

Temperature Range: 10°C to 50°C

Power Consumption: Single Phase 220/ 230V AC Supply +- 10% 50Hz
