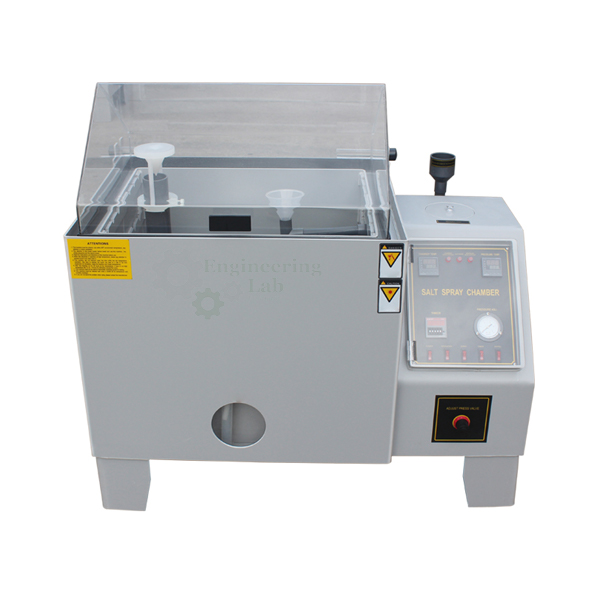

Salt Spray Chamber
Product Code : EL-LEAA-11030
Quick Answer: The Salt Spray Chamber is used to assess the corrosion resistance of coating systems against a salt-laden environment, and for testing surface coatings and plating. It features a smart, high-precision digital PID microcomputer control system with an error of ±0.1°C and a digital direct display, an ideal temperature range from normal room temperature to 60°C, a chamber capacity of 2000 L, and 4 wheels for mobility on a 240V electric power source. It includes an adjustable spray time, a fine glass nozzle, double overheating protection with a low water level alarm, and a water sealed chamber cover with demist function, and requires a 2 HP air compressor (not included).
A salt spray chamber is useful in assessing the ability to test the corrosion resistance of the coating system against a salt-laden environment. It is also useful in testing for surface coating and plating.
Features :
The Salt Spray Chamber is lightweight, long-lasting and durable, with an inbuilt PID control, and its spray time is adjustable by the operator. The fine glass nozzle makes it look great, and the product requires the use of a 2 HP air compressor. A water sealed chamber cover makes it more safe, with operation safety further ensured through double overheating protection and a low water level alarm system, and the product also allows remote test monitoring and operation control.
Control System:
The Control System is a smart, high precision digital PID control microcomputer control instrument, with an error of ±0.1°C, thin film keyboard buttons, and digital and direct display; temperature control and power output are managed by the microcomputer algorithm to achieve high precision and high power efficiency. The salt spray test chamber is also equipped with a water shortage warning system, and all heaters are over-temperature protected with electronic and mechanical devices. Multiple system protection ensures safe and reliable use.
Characteristics:
Interior and exterior use hard PVC, offering anti-corrosion, anti-aging protection with a smooth and beautiful surface, and the cover uses hard transparent PMM or hard PVC so the specimen status can be viewed at any time. The fine glass nozzle ensures uniform diffusion of spray and is not blocked by crystal, which further maintains the standard and quality of continuous test. Spray time is adjustable, and the high precision temperature controller with digital display introduces P.I.D. automatic tuning control, while double over heating protection and a low water level alarm ensures operation safety.
Demist function: Water sealed chamber cover
Comply with standard like ISO 9227, ASTM B117, CNS, JIS, DIN, GB, BS, IEC, MIL, etc.
Technical Specification:
Material for Construction: Stainless steel
No. of Wheels: 4
Power Source: Electric
Display mode: Digital
Ideal temperate range: Normal room temperate to 60 degrees C
Accuracy parameter: +-0.5 degree to 1 degree C
Chamber capacity: 2000 L
Material type: Mild steel
Voltage: 240 V
Application:
Corrosion resistance test for products after treated by plating, anodized, spraying, and anti-rust.
Other Details:
Use Hard PVC, anti-corrosion.
PID control.
Spray time adjustable.
Fine glass nozzle
Need 2HP air compressor (Not included)
