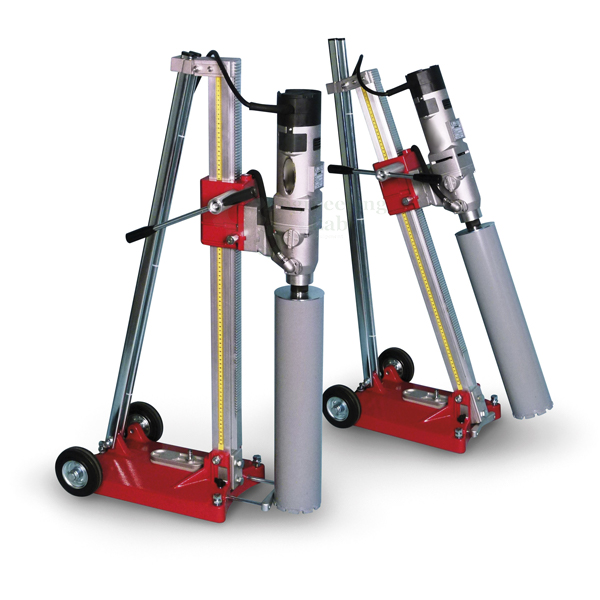

Core Cutting/Core Drilling Machine (Motorized)

Core Cutting/Core Drilling Machine (Motorized)

Product Code : EL-RTLE-10498

Quick Answer: The Core Cutting/Core Drilling Machine (Motorized) is a compact, motorized core drill with a bit capacity of 25mm to 150mm diameter, rated at ~220 V/50Hz with a 2800W power input and a no-load speed of 840 rpm, fitted with a friction clutch and overload current protection and a 1 1/4″ UNC male shaft. It is used for drilling cores in concrete, reinforced concrete, asphalt and brick.

Features
Compact size with light weight as well as safety in operation
High-strength gear to keep the drill working long hours constantly
The drills are equipped with a friction clutch as well as over load current protection for protecting motor
Out setting water swivel seal facilitate making replacement when the seal worn out
Bits capacity25mm Dia – 150mm Dia
Specifications
Rated Voltage~220 V / 50Hz
Max. bit diameterØ50mm/100mm/150mm
Power Input2800W
No-Load Speed840rpm
Shaft Male1 1/4″UNC

Complete Combination:

The core drill includes drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out setting water swivel seal, hydraulic system. Optional parts include water pump, rod for ceiling jack, water container, adapters.

Application:

The Core Drill is designed for concrete, reinforced concrete, Asphalt and brick in construction.

For this and other rock testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
