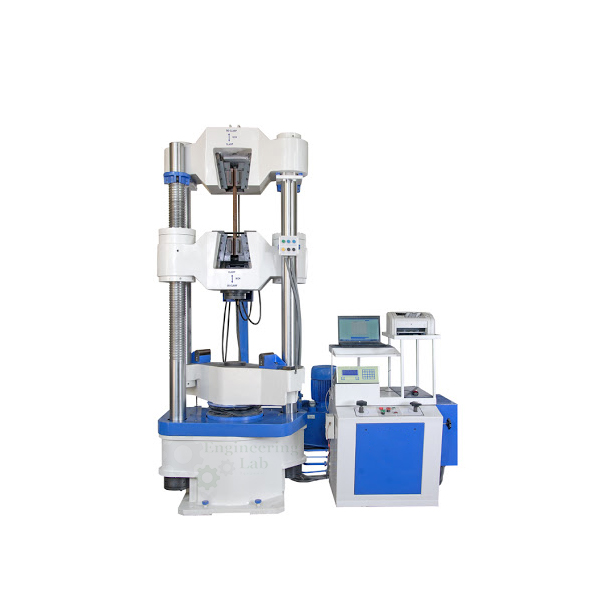

Computerized Universal Testing Machine
Product Code : EL-STLE-10559
Principle of Operations:
Operation of the universal testing machine is by hydraulic transmission of load from the test specimen to a separately housed load indicator.
The system is ideal since it replaces transmission of load : through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.
Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel.
The cylinder of the dynamometer is also of self – lubricating design.
The load transmitted to the cylinder of the dynamometer is transferred through a leverage to the pendulum.
Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder.
The deflection of the pendulum represent the absolute load applied on the test specimen.
Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of the specimen.
Load is applied by a hydrostatically lubricated ram.
Machine consists of:
Straining Unit
Control Panel Power Pack
Hydraulic Controls
Automatic Continuous Roll Load – Elongation Recorder
Load Indicator System
Software Features:
Test you can conduct:
Tensile Test
Proof Test [Stress Vs %Strain (If Extensometer is used)]
Compression Test Bend Test
Single Shear
Double Shear
Some Data Entry Points :
Pre – Load Data Entry to avoid slippage in graph
Fully customized data entry
Extensometer Gauge Length Selection – 10, 25, 50 mm
Lower force & higher force data entry in % of maximum load to calculate proof stress
Real time Graphs :
Dual Graph – Stress Vs %Strain and Load Vs Displacement (If Extensometer is used)
Load Vs Displacement
Specimen Types :
Round
Flat Hollow
TOR / TMT Steel
Units :
Load – kN, Kg, N
Stress – kN/mm2, N/mm2 (MPa), Kg/mm2
Displacement – mm
Before start test you will get all information entered regarding test.
Fully customized header & footer information for test report.
Facilities to search, open, view, delete previously tested files.
Results Parameters : * Ultimate Load, Ultimate Strength, Displacement at Ultimate Load, Maximum Displacement, %Elongation, %Reduction in area, Breaking Load, Breaking Stress, Yield Load, Yield Strength, 0.02% Proof Strength, 0.1% Proof Strength, 0.2% Proof Strength, 0.5% Proof Strength,, 1% Proof Strength, all Proof loads, Young’s Modulus.
