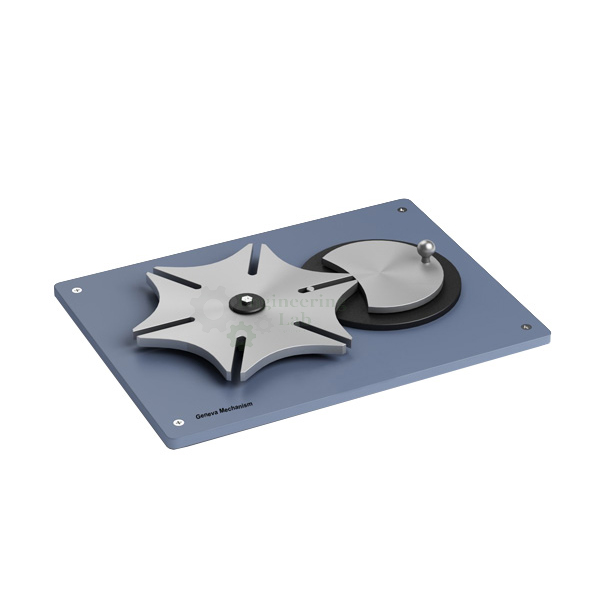

Geneva Mechanism

Geneva Mechanism

Product Code : EL-AMLE-10628

Quick Answer: The Geneva Mechanism is a commonly used mechanism for producing intermittent rotary motion from a uniform input speed. Its driven member, or star wheel, contains evenly spaced slots into which the roller of the driving crank slides: as the drive wheel turns, it enters a slot of the star wheel and the mechanism enters its motion period, and as the pin leaves the slot the drive wheel has been indexed and stays stationary until the pin rotates back around.
It is a commonly used mechanism for producing an intermittent rotary motion from a uniform input speed. As the drive wheel turns it enters the slots of the driven, or star, wheel and the mechanism enters its motion period. As the pin leaves the slot the drive wheel has been indexed and it continues to stay stationary until the pin rotates back around. The driven member, or star wheel, contains evenly spaced slots into which the roller of the driving crank slides.

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.

Last Updated: September 2026

Related Products: Cam Mechanism, Slider Crank Mechanism, Four Bar Chain Apparatus, Slotted Link Mechanism Apparatus
