Link Polygon Apparatus
Product Code : EL-AMLE-10631

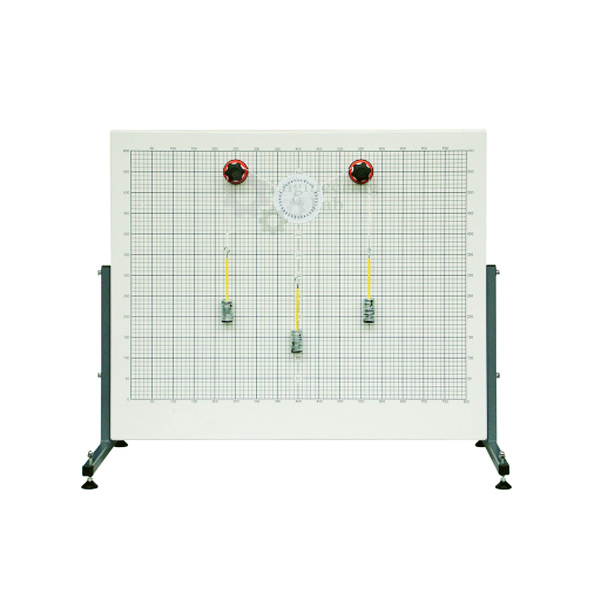

Quick Answer: The Link Polygon Apparatus is a kit used with the Work Panel to study forces pulling on one or more points at different angles, using magnetic parts to demonstrate three or more coplanar concurrent forces, known as a triangle of forces or force polygon. Using masses, hooks, pulleys, cords, rings, magnetic mounts, magnetic protractors, weights and a spring balance, the kit can apply up to five forces at any angle to a single point (concurrent) or two points (non-concurrent), letting students measure the forces at equilibrium and compare them with theoretical values found using ‘Bow’s Notation’ and the drawing method.
For use with the Work Panel, the kit allows several experiments with forces pulling on one or more points at different angles. Students or teachers fit the magnetic parts of the kit to the Work Panel to study or demonstrate three coplanar concurrent forces (a triangle of forces) or more (force polygons); the kit uses masses, hooks, pulleys and cords to apply forces on a single point (concurrent), and students may also set it to apply forces to two points (non-concurrent). Students measure the forces at equilibrium and compare them with theoretical values.
The versatility of the kit means that up to five forces can be set at any angle, using its cords, rings, magnetic mounts, magnetic protractors, pulleys, weights and a spring balance. The kit introduces ‘Bow’s Notation’ and the drawing method of finding the forces, and we supply each kit with a fully illustrated user guide containing theory, experiments and typical results.
