ABS Braking System Training Board Simulator
Product Code : EL-AELE-10716
Quick Answer: The ABS Braking System Training Board Simulator is an educational training board-simulator that lets students learn the structure of an ABS control system, study its components, and perform measurements, tests, and other diagnostic procedures. A fully functional ABS electronic braking system, based on actual automobile components, is installed in a mobile aluminum frame and demonstrates the different operation modes of the braking system. It serves as a visual aid for mechanical engineering students and as educational equipment for brake system repair and service training.

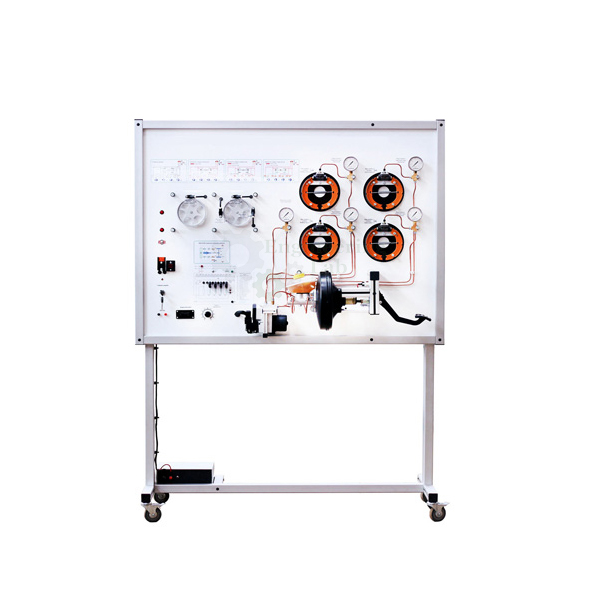

The training board-simulator is a great educational tool that allows students to learn the structure of the ABS control system, study its components, and perform various measurements, tests, and other diagnostic procedures. The fully functional ABS electronic braking system is installed in a mobile aluminum frame, and this training board-simulator is specially designed to demonstrate the ABS braking system and its operational structure. The educational training board is based on actual automobile components.
The stand is equipped with a functional ABS braking system and shows the different operation modes. The training brake rig can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components, and the automotive training stand can also be used as educational equipment for brake system repair and service procedures.
FEATURES:
Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of the system’s fault codes
Clearly visible fully functional braking system and its components
Cross diagonal hydraulic braking system with front and rear discs with calipers
Driving mode simulation
Brake rigs can be used for mechanical service and repair training
On-board diagnostic capabilities
Diagnosis through OBD 16 – pin diagnostic connector
Functional parking brake
Functional electronic ABS system
Functional brake booster
With installed pressure gauges can be monitored the pressure in the brake circuit of each wheel;
Electronic control unit (ECU) identification
Reading/erasing fault codes
Displaying the operating system parameters (live data)
Activating the actuators (Depends on the control unit)
SPECIFICATIONS:
The training board is equipped with a functional ABS braking system.
With installed pressure gauges it is possible to monitor the pressure in the main brake circuit and the individual pressure of each wheel.
The training board is equipped with original hydraulic brake system.
Just the brake pads of the brake drums are used instead of the brake discs, to Show better, when the pressure rises up and the braking moment starts.
The operation of the hydraulic circuit is shown on the stand in the pictures in different mode.
12 V Battery or 220/12 V power supply unit
Automotive oscilloscope
OBD Diagnostic scan tool
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1360 x 550 x 1800 mm
Weight (approx.): 60kg
