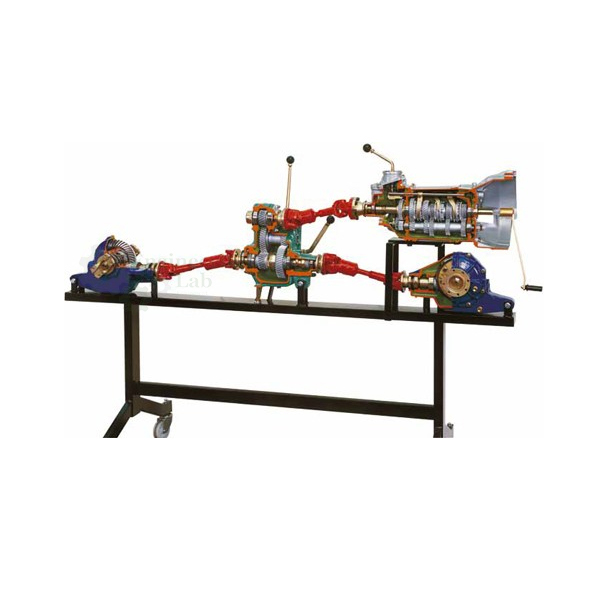

Vehicle Transmission 5 Speed Manual Gearbox
Product Code : EL-AELE-10752
Quick Answer: The Vehicle Transmission 5 Speed Manual Gearbox is a real cutaway working model of a transmission assembly fitted to most 4WD vehicles, with accurate parts connected together to clearly show how a gearbox uses gears and gear trains to convert speed and torque from a rotating power source to another device. Professionally painted and sectioned for training purposes with many parts chromium-plated and galvanized for longer life, it serves as a visual aid for mechanical engineering students to study transmission structure and components.
The working model of the Transmission assembly is fitted to most 4WD vehicles, with the various parts supplied as accurate real cutaways connected together to show their operation in an easy and immediately understandable manner. This cutaway model is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts and cross-sections.
A transmission is a machine in a power transmission system that provides controlled application of the power; the term is often used to refer simply to the gearbox, which uses gears and gear trains to provide speed and torque conversions from a rotating power source to another device. The training model can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components, and can also be used as educational equipment for the MPFI system repair and service procedures. Many parts have been chromium-plated and galvanized for a longer life.
FEATURES:
Transmission system model is ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
Operated: Manually
Equipment Layout: On Base with wheel
Fine finish
Simple operations
Functional accuracy
SPECIFICATION:
Gearbox: 5 speeds and reverse
2-Speeds reduction gear
Movement restorer with front wheel drive manual control
Drive shafts with universal joints
Manual operation
Self-locking hypoid differentials
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 300 x 1100 mm
Weight (approx.): 225 kg
