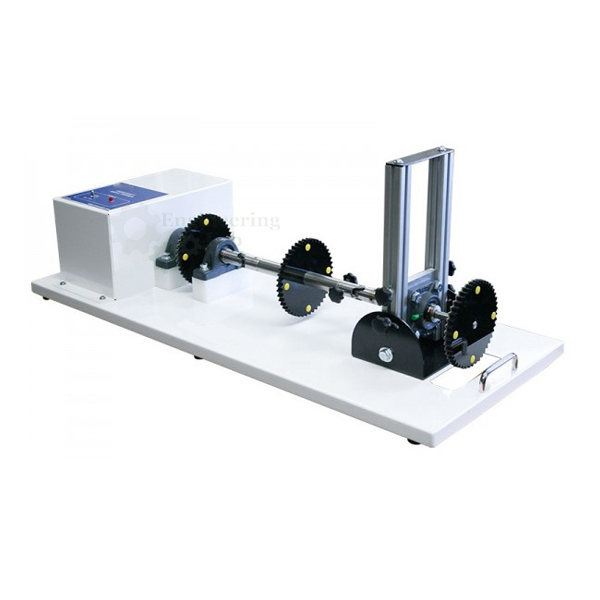

Working Model of Drive Shaft
Product Code : EL-AELE-10743
Quick Answer: This Working Model of Drive Shaft is designed to help demonstrate and simplify the complex acceleration and deceleration phenomenon that occurs in revolving universal joints and drive shafts operating at various angles. Even when the input driveshaft rotates at constant speed, the output driveshaft maintains a variable speed depending on the angle between them, which causes vibrations and wear over time, and the higher the angle between the shafts, the more amplified this effect is.
The propeller shaft, sometimes called a carden shaft, transmits power from the gearbox to the rear axle. Normally the shaft has a tubular section and is made in one- or two-piece construction, with the two-piece arrangement supported at the mid point by a rubber-mounted bearing.
Short drive shafts are incorporated for the transmission of power from the final drive assembly to the road wheels in both front-wheel-drive and rear-wheel-drive layouts.
FEATURES:
Driven by electric motor
Visual indicators
Universal shaft adjustment
SPECIFICATION:
Fully functional, Drive Shaft system is installed in a mobile solid frame.
Results of changes in speed can be audibly demonstrated using toothed wheels.
Different driveshaft angles can be selected using the adjustment system.
Power required : 230v, 50hz, 1phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 500 x 600 mm
Weight (approx.): 45 kg
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026
