Refrigeration Assembly and Maintenance Accessories
Product Code : EL-RAACLE-10794

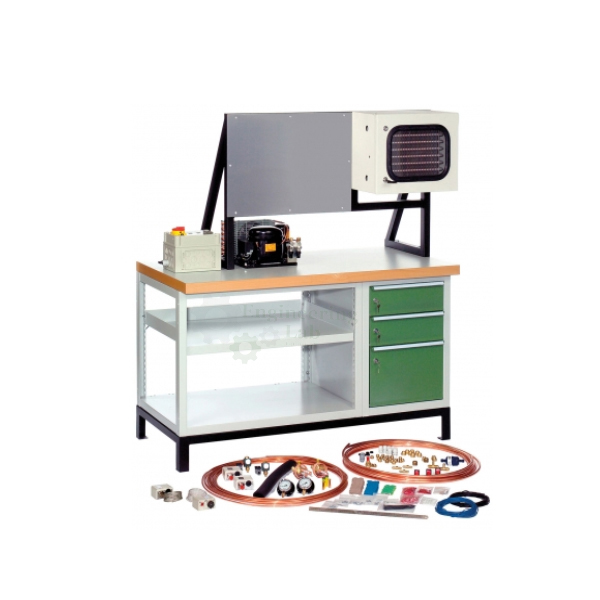

Refrigeration Assembly and Maintenance Accessories (code EL-RAACLE-10794) are a workbench training set on which trainees build, wire, fill, commission and check a complete refrigeration system from individual components. Bolted pipe joints let the circuit be assembled and taken apart repeatedly, and the set includes a 373 W condensing unit, a show case evaporator, a 480 × 280 × 390 mm refrigeration chamber with sight window and a 710 × 500 mm aluminium assembly panel.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Purpose | Building a complete refrigeration system from individual components through planning, installation and maintenance |
| Refrigeration assembly | Installing LP and HP pressure switches, expansion valve and refrigeration circuit pipework |
| Pipe joints | Bolted, not soldered, so the circuit can be assembled and disassembled repeatedly |
| Electrical installation | Wiring and connection of all units and switching elements |
| Workbench | Fitted with drawers for storing components and tools |
| Frame | Carries the assembly panel and refrigeration chamber |
| Fixed items | Frame, condensing unit and switch cabinet bolted permanently to the working surface |
| Panel mounting | Refrigeration and electrical components attached to the aluminium assembly panel |
| Condensing unit | |
| Power consumption | 190 W |
| Refrigeration capacity | 373 W at 5 °C evaporation temperature |
| Receiver | Approx. 1 L |
| Show case evaporator | |
| Capacity | 50 W at t0 = -6 °C, delta T = 8 K |
| Transfer area | 1,06 m² |
| Chamber, panel and controls | |
| Refrigeration chamber | With sight window, 480 × 280 × 390 mm (L × W × H) |
| Aluminium assembly panel | 710 × 500 mm (L × W) |
| Expansion valve | Thermostatic, adjustable |
| Thermostat | Adjustable, -30 to 15 °C |
| Learning content | |
| Planning | Planning and executing assembly steps and processes |
| Pipe work | Making pipe joints in accordance with a system diagram |
| Electrical work | Carrying out electrical installation in accordance with a circuit diagram |
| Filling | Filling and evacuating the refrigeration system |
| Commissioning | Commissioning and checking the refrigeration system after assembly |
| Assembly | Assembly of a refrigeration system from individual components |
| Power, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | Approx. 1600 × 800 × 1400 mm (L × W × H) |
| Weight | Approx. 140 kg |
| Supply | |
| Product code | EL-RAACLE-10794 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Refrigeration Assembly and Maintenance Accessories Used For?
Refrigeration technicians have to be able to turn a system diagram and a circuit diagram into a working plant, and this set lets that be practised without soldering. Trainees plan the job, mount the pressure switches, thermostatic expansion valve and evaporator on the aluminium panel, run and bolt the pipework to the condensing unit, and wire the units and switching elements to the switch cabinet. The circuit is then evacuated, filled and commissioned, the thermostat set within -30 to 15 °C and the chamber checked through the sight window, after which the system can be stripped down for the next group.
What to Specify When Ordering
- Quantity — the number of assembly workbenches required.
- Supply — a 230 V, 1 phase connection, either 50 Hz or 60 Hz.
Frequently Asked Questions
What do trainees do on this assembly set?
They plan and carry out the assembly steps, make pipe joints from a system diagram, wire the electrics from a circuit diagram, fill and evacuate the system, and commission and check it.
Why are the pipe joints bolted?
The joints are bolted instead of soldered, so the refrigeration circuit can be assembled and dismantled many times with the same components.
What is the condensing unit rating?
The condensing unit consumes 190 W and gives 373 W of refrigeration capacity at 5 °C evaporation temperature, with a receiver of approx. 1 L.
How large are the chamber and the assembly panel?
The refrigeration chamber, which has a sight window, measures 480 × 280 × 390 mm, and the aluminium assembly panel is 710 × 500 mm.
Which parts stay fixed to the bench?
The frame, condensing unit and switch cabinet are permanently bolted down to the bench top, while the refrigeration and electrical components go on the aluminium panel.
What does the show case evaporator deliver?
It has a capacity of 50 W at an evaporating temperature of -6 °C with a temperature difference of 8 K, and a transfer area of 1,06 m².
OEM Manufacturer
The Refrigeration Assembly and Maintenance Accessories are made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
