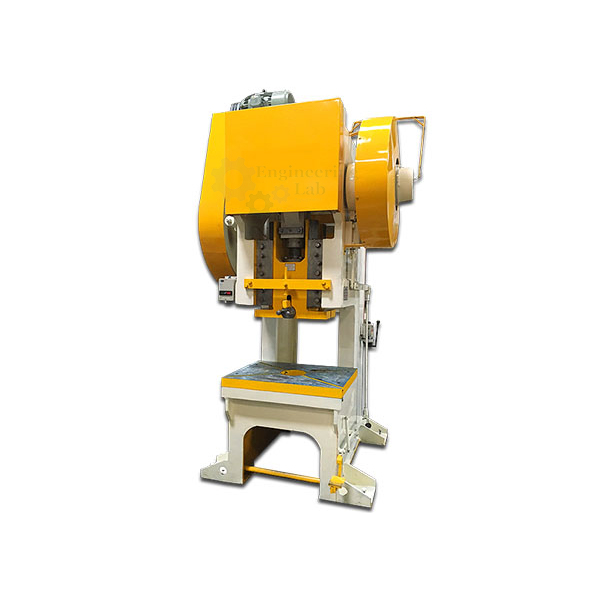

Power Press Machine

Product Code : EL-WTMAA-10466

Power Press Machine (code EL-WTMAA-10466) is a mechanical power press with an all steel frame, used for blanking, forming and other pressing operations in mass production. Its crank shaft is special alloy steel running in bronze bushes, the pin/rolling key clutch gives continuous strokes, an adjustable stroke allows a short stroke for blanking and forming, and a balanced cast iron flywheel stores the energy for pressing.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Power Press Machine Used For?

A power press stores energy in a rotating flywheel and, when the clutch is engaged, the crank shaft converts that rotation into the up and down stroke of the ram, which drives the upper tool into the lower tool to cut or shape sheet. The operator sets up the press tools, adjusts the stroke, using a short stroke for blanking and forming, and runs continuous strokes for mass production. Blanking cuts flat parts out of sheet, while forming bends or draws the sheet into shape between the tools.

What to Specify When Ordering

• Quantity — the number of presses required.
• Capacity — the press tonnage needed; presses up to 30T are supplied with C.I. legs.

Frequently Asked Questions

What operations can the press carry out?
The adjustable stroke lets it perform all kinds of operations, with a short stroke used for blanking and forming, and the clutch gives continuous strokes for mass production.

How is the frame constructed?
The frame is all steel, fabricated from rolled steel plates with cross ribbings, and its alignment is ensured by machining; presses up to 30T come with C.I. legs.

What type of clutch is used?
A pin/rolling key clutch made of special alloy steel is used, well supported, with a heat-treated pin or rolling key that allows continuous stroking.

What is the crank shaft made of?
The crank shaft is special alloy steel, machined to a grind finish and fitted in bronze bushes in which it turns.

What does the flywheel do?
The cast iron flywheel is sized to store and release the energy needed for each pressing operation, and it is balanced so that it runs smoothly.

How are the gears made?
The gears are of steel cast or fabricated construction, and their teeth are generated on a precision hobbing machine.

OEM Manufacturer

Buyers of the Power Press Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests workshop machines, tools and accessories for engineering training workshops, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Workshop Tools and Machines

• Hydraulic Press Machine — rigid hydraulic press with double acting cylinders, hardened EN-8 ram and hand lever power pack.
• Plate Rolling Machine — 3 roll pyramid plate bending machine with double pre-pressing, planetary gear drive and cone bending.
• Bandsaw Machine — band sawing machine with chrome plated ground column, worm gear box and automatic saw frame height adjustment.

See the full Workshop Tools, Machines and Accessories range or all Mechanical Engineering Lab Equipment.

Request a Quote

For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of presses and the press capacity required and your delivery location through the contact page, or add the Power Press Machine to the enquiry cart from this page.
