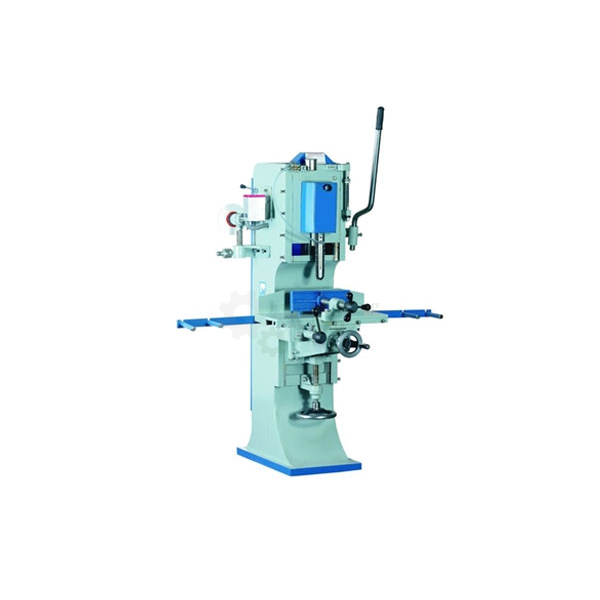

Wood Working Chain N Chisel Mortiser Machine

Wood Working Chain N Chisel Mortiser Machine

Product Code : EL-WTMAA-10593

Quick Answer:
The Wood Working Chain N Chisel Mortiser Machine is a mortising machine driven by a 2 HP, 1440 RPM, 3 phase electric motor, supplied with a 1/2″ chain set, R/f switch, oil bowl, and a grinding wheel and v-belt fitting in the grinding attachment for cutting mortises with both a chain mortiser and a chisel mortiser.

Standard Accessories:
1 No. Electric Motor of 2 HP/1440 RPM (3 Phase)
1/2″ chain set
R/f switch
Oil bowl
Grinding wheel & v-belt fitting in grinding attachment
Toolkit & m/c manual.

Technical Specifications :
Air pressure required (kg/cm2): 5 to 7
Electric motor (hp/rpm): 2/1440
Table size: 455x 150/18″x6″ mm/inch
Max. height of workpiece on table: 254/10″ mm/inch
Max. height of door or frame: 1000/39″ mm/inch
Max. depth of cut-chain mortiser: 140/51/2″ mm/inch
Max. depth of cut-chisel mortiser: 90/31/2″ mm/inch
Longitudinal movement of head/table: 305/12″ mm/inch
Table tilt-degree: 45
Size of dust collection port-dia: 100/4″
