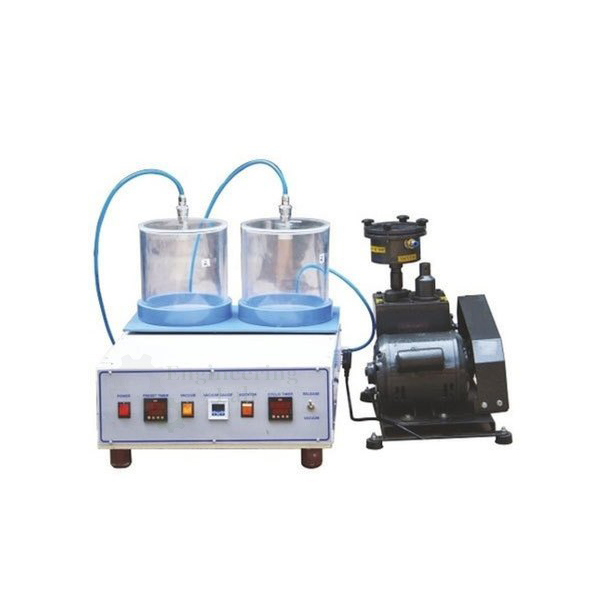

Asphalt Mixer Theoretical Density Meter

Asphalt Mixer Theoretical Density Meter

Product Code : EL-BTLE-10427

Quick Answer: The Asphalt Mixer Theoretical Density Meter is a vacuum-method density tester built as per ASTM D 2041-03, used for determination of theoretical density of asphalt mixer for applications such as asphalt mixer design, road condition investigation, and calculation of porosity and compactness in road construction quality management. It has a main body fitted with a vacuum gauge, 2 vacuum containers made of acrylic pipe, and a vibratory table with a complete control panel that operates in manual and automatic mode to release entrapped air from the asphalt sample, covering a vacuum range of 0-100 KPA (0-750 mm Hg) with a vibration loading of 10 kg and 2 samples tested at a time. It is suitable to work on 230 V AC single phase 50 Hz.

Asphalt Mixer theoretical density meter as per ASTM D 2041-03. This equipment is used for determination of theoretical density of asphalt mixer by vacuum method for application such as asphalt mixer design, road condition investigation, calculation of porosity and compactness in road construction quality management. This equipment has a main body fitted with a vacuum gauge, 2 vacuum containers made of acrylic pipe & a vibratory table under with complete control panel. The vibratory table operates on manual and automatic mode to release the entrapped air from the asphalt sample kept inside the vessels, with vacuum range 0-100 KPA (0-750 mm Hg), vibration loading of 10 kg, and number of samples tested being 2. It is suitable to work on 230 V AC single phase 50 Hz.

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments manufacturer, engineering lab equipment supplier, mechanical engineering lab equipment suppliers in india, civil engineering lab equipment suppliers, civil engineering lab equipments manufacturers, engineering equipment supplier in Ambala, India.

Last Updated: September 2026

Related Products: Automatic Compactor for Bituminous Mixes, Automatic Marshall Stability Test Machine, Solvent Recovery Unit, Reflux Extractor 4000 Gms
