Standard Tar Viscometer

Standard Tar Viscometer

Product Code : EL-BTLE-10458

Quick Answer: The Standard Tar Viscometer measures the viscosity of cut back bitumen and road oil using a chrome plated copper bath with a drain valve, a central tube to hold the test cup and position the stirrer, and levelling feet for accurate seating. Test cups are available in 2, 4 and 10 mm diameter per EN 12846, and the unit runs on 300 W power with dimensions of 262x262x550 mm and a weight of approximately 10 kg.

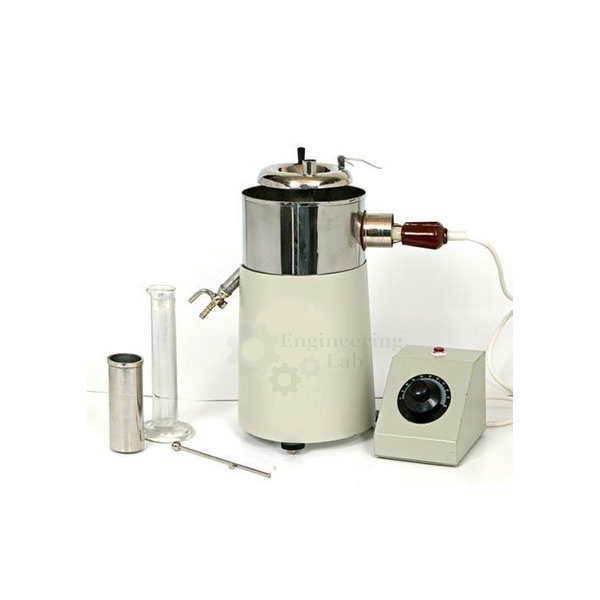

The viscometer consists of a chrome plated copper bath, with a drain valve and a central tube to receive the test cup and to position the stirrer, and is mounted on a stand with levelling feet. The stirrer has a curved shield and is provided with an insulated handle, thermometer socket and swivel support for the valve, and the instrument is used for determining the viscosity of cut back bitumen and road oil.

Required Cup Sizes According to Different Standards: EN 12846 : 2, 4 and 10 mm dia.
Power: 300 W
Dimensions: 262x262x550 mm
Weight (approx.): 10 kg

Standards: EN12846, 13357

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.

Last Updated: September 2026

Related Products: Kinematic Viscometer Bath, Saybolt Two Tube Digital Viscometer, Cut Back Bitumen Distillation Equipment, Rolling Thin Film Oven
