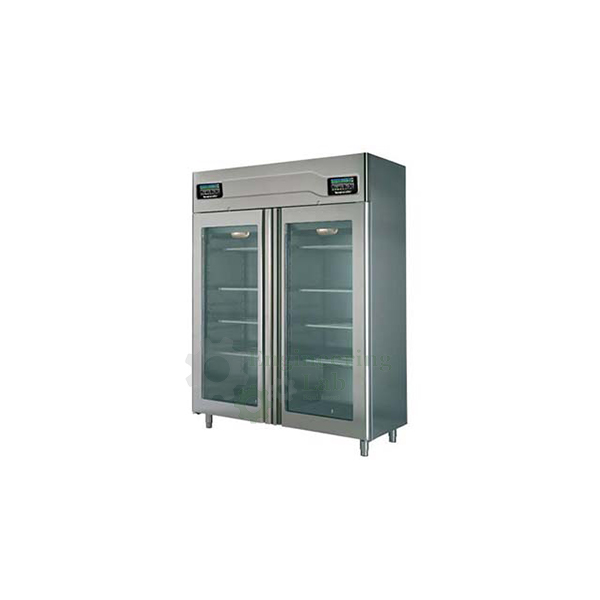

Cement Curing Cabinet
Product Code : EL-CTLE-10365
Quick Answer: The Cement Curing Cabinet maintains humidity from 95% to saturation via a water nebulizer and temperature to 20±1°C via an immersion heater and separate refrigerator unit, for curing cement, concrete and mortar specimens. Its frame is made of chemical-resistant polypropylene with transparent glass front doors, and four internal stainless steel racks support moulds and a large number of cement prisms; a simple plastic pan can also be used to cure specimens in water. It requires connection to a suitable air compressor, draws approximately 1700 W, and is tested to ASTM C109, ASTM C511, EN 196-8, EN 196-1 and EN ISO 679.
The frame is made of a strong polypropylene structure, which is chemical resistant and particularly suitable for cement applications, and the front doors are fitted with transparent glass. The humidity is maintained from 95% to saturation by a water nebulizer, and the temperature is maintained to 20±1°C by an immersion heater and a separate refrigerator unit. The four stainless steel racks of the internal frame can support the moulds with specimens and a large number of cement prisms, and the cabinet can also be used to cure concrete cubes and other mortar specimens; using a simple plastic pan, it is also possible to cure specimens in water. It is ideal for curing cement specimens in commercial and site laboratories. The unit has to be connected to a suitable air compressor.
| Specification | Details |
|---|---|
| Power | 1700 W approx. |
| Internal dimensions (lxdxh) | 1115x435x1500 mm |
| External dimensions | 1160x550x1900 mm |
| Standards | ASTM C109 | ASTM C511 | EN 196-8 | EN 196-1 | EN ISO 679 |
For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
