Compression-Flexure Cement Testing Frames

Compression-Flexure Cement Testing Frames

Product Code : EL-CTLE-10369

Quick Answer: The Compression-Flexure Cement Testing Frames are multipurpose compression/flexural testers designed for applications requiring a limited maximum load together with a large testing space, such as compressive strength testing on lightweight concrete and soil-cement specimens, splitting and flexural tests on concrete specimens, and testing of high strength cement and refractory specimens, all with the appropriate accessories.

Two versions are available: a single compression station, with 500 kN or 600 kN capacity, for compression tests on low strength specimens; and a double station model, with 600/15 kN or 500/15 kN capacity, which extends the possible applications to flexural tests on cement in addition to compression tests on low strength specimens.

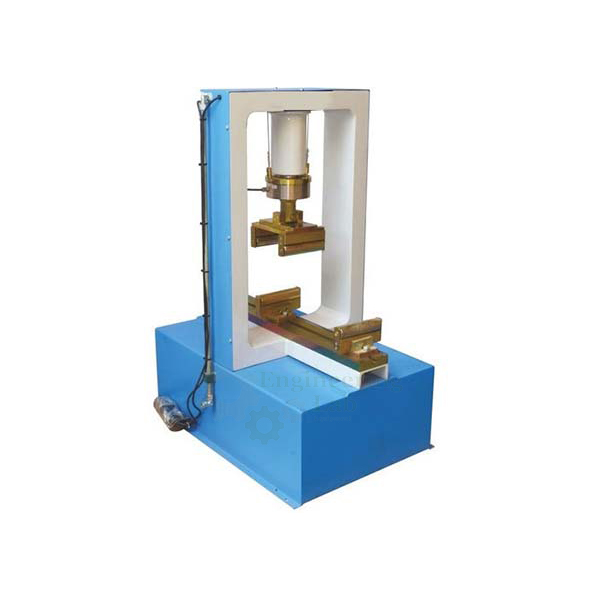

The frames feature a high rigidity, solid one-piece steel frame with compression platens, and are universal compression testers suitable to house various accessories for testing cement, mortar, resins and other materials, offering a large testing space. A spherical seat allows free alignment at the initial contact with the specimen. Pedestal not included.

SpecificationDetails
StandardsASTM C109 | ASTM C349 | ASTM C348 | EN 196-1

For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
