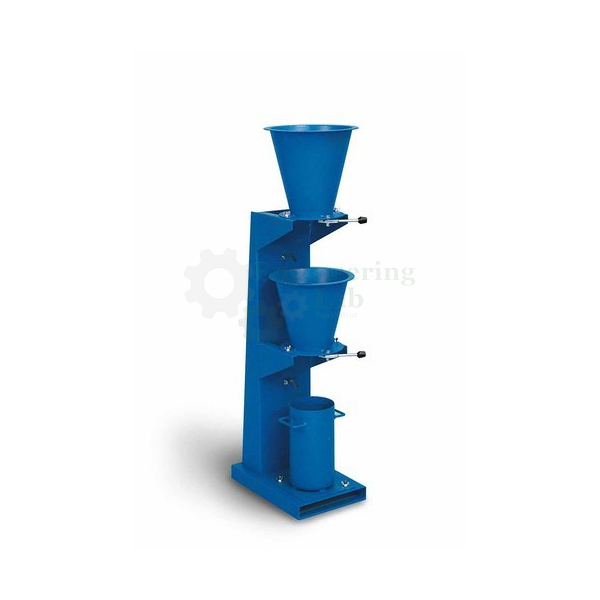

Compaction Factor Test for Concrete Workability
Product Code : EL-CTLE-10291
Compaction Factor Test for Concrete Workability (code EL-CTLE-10291) is a set of laboratory apparatus for the compaction factor test, the workability test used on concrete of low workability for which the slump test is not suitable. The set comprises trowels, a 15.2 cm hand scoop, a rod 1.6 cm in diameter and 61 cm long, of steel or another suitable material, with one rounded end, and a balance.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Test | Compaction factor test, a laboratory workability test for concrete |
| Measured value | Ratio of the weight of partially compacted to fully compacted concrete |
| Suitable for | Concrete of low workability, for which the slump test is not suitable |
| Set contents | Trowels, hand scoop, rod and balance |
| Hand scoop | 15.2 cm long |
| Rod | Steel or other suitable material, 1.6 cm diameter, 61 cm long, rounded at one end |
| Standards | BS 1881:103, IS 5515 |
| Product code | EL-CTLE-10291 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Compaction Factor Test for Concrete Workability Used For?
Very stiff mixes often show little or no slump, so the slump test cannot tell them apart; the compaction factor test separates such mixes by how far they compact when dropped under their own weight. In the laboratory the scoop and trowels are used to handle and place the fresh concrete, the rod to compact it fully, and the balance to weigh the partially compacted and the fully compacted concrete. Dividing the first weight by the second gives the compaction factor, which is reported as the workability of the mix. The standards listed are BS 1881:103 and IS 5515.
What to Specify When Ordering
- Quantity — the number of test sets required.
Frequently Asked Questions
When is the compaction factor test chosen instead of the slump test?
It is used for concrete of low workability, where the slump test is not suitable because such stiff mixes show too little slump to compare.
What items make up the compaction factor set?
The apparatus consists of trowels, a hand scoop 15.2 cm long, a rod 1.6 cm in diameter and 61 cm long rounded at one end, and a balance.
What is the rod in the set made of?
The rod is made of steel or another suitable material; it measures 1.6 cm across and 61 cm in length, with one end rounded.
How is the compaction factor worked out from the weighings?
The weight of partially compacted concrete is divided by the weight of the same volume of fully compacted concrete, both found on the balance; the ratio is the compaction factor.
Under which standards is this workability test listed?
The standards listed are BS 1881:103 and IS 5515 for the compaction factor test as a laboratory workability test on concrete.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Compaction Factor Test for Concrete Workability at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Concrete Testing Equipment
- Laboratory Concrete Mixer — tilting steel drum concrete mixer, 55/110 litres, turned at 20-22 RPM by a 1½ HP motor.
- Vee Bee Consistometer — vibrating table set with swivel arm, acrylic disc, slump cone and container for Vee Bee tests.
- Volume Change Apparatus — mould with four reference pins, comparator frame, reference bar and 0.002 mm dial gauge for length change.
- Prism Mould Three Gang — three gang mould for 40.1 × 40 × 160 mm prisms, individually verified, with base.
- Straight Edge — flat steel strike-off bar, 1 × 12 in, for cube, cylinder, slump cone and air meter work.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of compaction factor test sets required and the delivery location through the contact page; the Add To Cart button on this page also adds the Compaction Factor Test for Concrete Workability to an enquiry.
