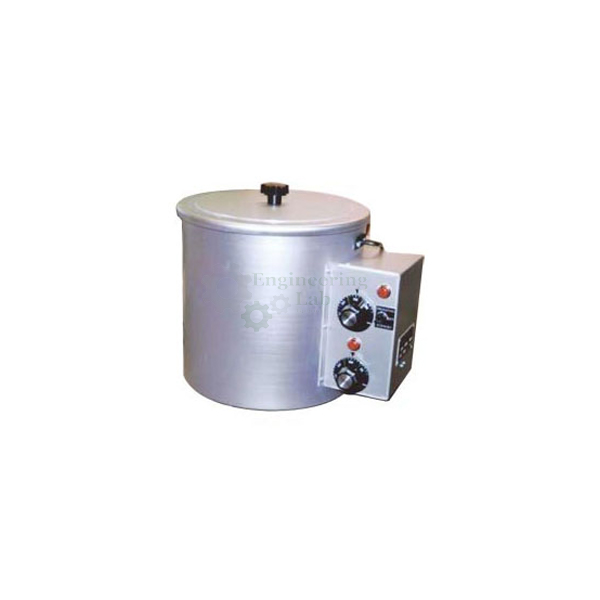

Melting Pot
Product Code : EL-CTLE-10917
Quick Answer: The Melting Pot is used to melt capping compound for capping the ends of concrete cylinders to be tested. It comprises a metal container in a well-lagged steel jacket with thermostatic control and a standby heat switch, is supplied complete with a lift-off cover, and has an internal size of 140 x 150 mm and external size of 250 x 165 mm, a pot capacity of 2.4 litres, a rated power up to 750 W, and a temperature range of 40 to 340° C; it operates on single phase 230 Volts A.C.
The Melting Pot is used for melting capping compound. This pot comprises a metal container in a well-lagged steel jacket, fitted with thermostatic control and a standby heat switch. It is supplied complete with a lift-off cover.
Specification:
Dimensions (H x W): Internal 140 x 150 mm And External 250 x 165mm
Capacity: Pot capacity is 2.4 litres
Capping Pot Compound: We use for capping the ends of concrete cylinders to be tested and also available 5 kg packs.
Rated Power: Melting rated power up to 750 W
Temperature: Melting pot temperature 40 to 340° C
Melting Pot Warmer: Supplied with cover and handle an electrically heated and thermostatically controlled bath for melting the capping compound.
Suitable for operation on Single Phase 230 Volts A.C.
