Compaction Factor Test Apparatus

Product Code : EL-CTLE-10290

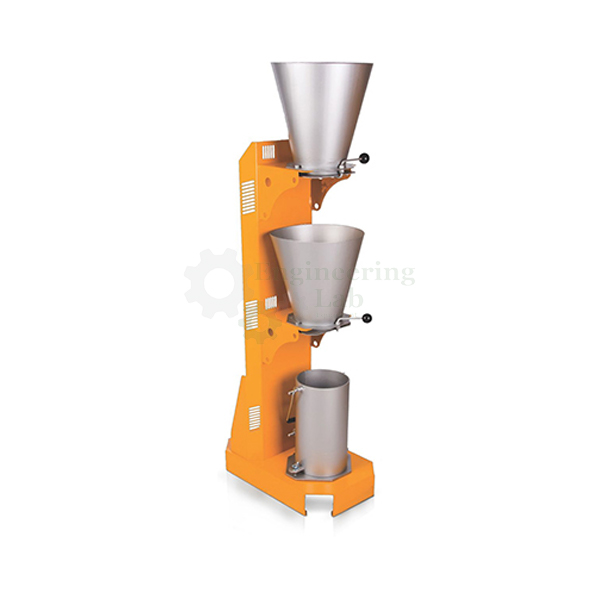

Compaction Factor Test Apparatus (code EL-CTLE-10290) is an apparatus for measuring the compacting factor of fresh concrete, the ratio of the weight of partially compacted concrete to the weight of the same concrete fully compacted, as a measure of workability. Two conical hoppers are attached on a cylinder and carried on a steel frame, each hopper has a hinge for quick release, and the 55 kg unit measures 500 × 400 × 1510 mm and comes with a 16 mm × 600 mm tamping rod.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Compaction Factor Test Apparatus Used For?

The compacting factor test measures workability by letting gravity do a fixed amount of compacting work on the concrete. Fresh concrete is placed in the upper hopper, released into the lower one through its hinged opening and then dropped into the cylinder; the excess is struck off and the cylinder is weighed. The same cylinder is then filled with concrete compacted fully, by the tamping rod or by vibration, and weighed again. The net weight of the partially compacted concrete divided by that of the fully compacted concrete gives the compacting factor, and a higher value marks a more workable mix. The standards listed for it are IS 7320, BS 1881-102, ASTM C143 and AASHTO T11.

What to Specify When Ordering

• Quantity — the number of compaction factor sets required.

Frequently Asked Questions

What does the compacting factor express?
It compares two weighings of the same cylinder: concrete compacted only by its fall from the hoppers, against concrete compacted fully. The nearer the ratio is to one, the more workable the mix.

How are the hoppers emptied during the test?
Each of the two conical hoppers is fitted with a hinge giving quick release, so the concrete can drop from one hopper to the next and then into the cylinder.

What are the overall size and weight of the apparatus?
The apparatus measures 500 × 400 × 1510 mm and weighs 55 kg, with the hoppers and the cylinder carried on a steel frame.

Is a tamping rod included with the compaction factor apparatus?
Yes. A tamping rod of 16 mm diameter and 600 mm length comes with the apparatus, for compacting the concrete fully in the second part of the test.

Which standards are listed for the compaction factor apparatus?
The standards listed are IS 7320, BS 1881-102, ASTM C143 and AASHTO T11 for this hopper and cylinder apparatus.

OEM Manufacturer

The Compaction Factor Test Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
