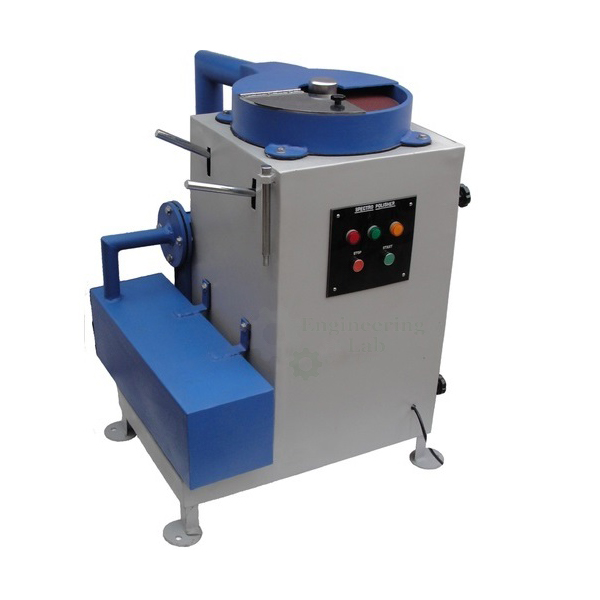

Spectro Sample Polisher Machine
Product Code : EL-STLE-10962
Quick Answer: The Spectro Sample Polisher Machine is an automatic, electrically powered machine operating at 1440 RPM with a power consumption of 3–6 KW at 220 V, using a 300 to 350 mm diameter abrasive disc, a suction motor of 1 hp minimum (2800 rpm, 415V AC, 50hz), and a disc motor of 2 hp or better (1440 rpm, 3ph, 50hz, 415 vac), finished with anti-fungal, rust-proof paint and weighing 100 – 1200 KG.
| Features | |
|---|---|
| Durable quality | - Spectro sample polisher is made of rust-resistant steel. |
| Less maintenance | - Products come with advanced features that do not require frequent cleaning and replacement of components. |
| Power costing on the outer body makes it more shiner. | |
| Other Details | |
| Anti Fungal, Rust Proof Paint | |
| Machine to suite the Disc Housing and to cover the Disc Plate by 180 Degrees for safety | |
| Made Up of Steel with Air Gripping Arrangement to Alundum Disc and with Locking System to Keep the Alundum Disc in Position | |
| At the back of the Disc Housing, the Pipeline connected to the Dust-Collecting Unit | |
| In Continues Process, there is Noise Less Operation | |
| Specifications | |
| Working type - Automatic | |
| Power source - Electric | |
| RPM - 1440 | |
| Power consumption - 3-6 KW | |
| Voltage consumption - 220 V | |
| Abrasive Disc - 300 to 350 MM Diameter | |
| Suction motor - 1 hp minimum, 2800 rpm, 415V AC, 50hz. | |
| Disc motor - 2 hp or better, 1440 rpm (minimum approx), 3ph, 50hz, 415 vac | |
| Air suction rotation speed - Approx. 1500 Rpm | |
| Machine Stand - Motor Starter on Machine Stand | |
| Disc Plate - Made of Steel | |
| Disc Housing - Cost Iron | |
| Weight - 100 – 1200 KG. | |
For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
