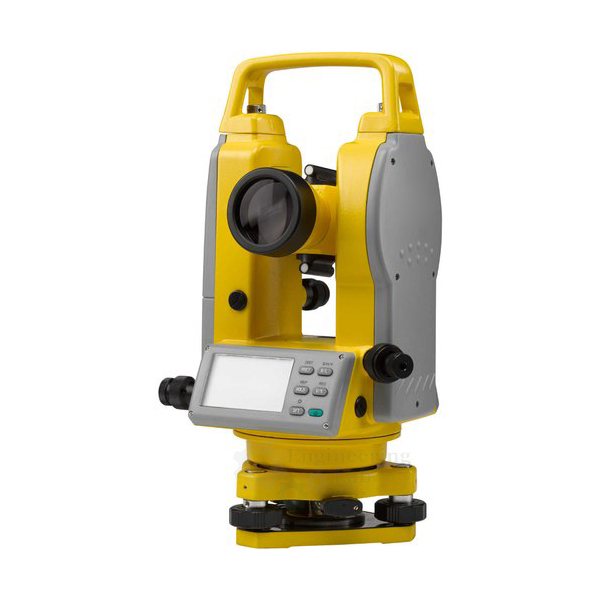

Electronic Theodolite
Product Code : EL-SLE-10979
Quick Answer: The Electronic Theodolite is a precision instrument used to measure angles in the horizontal and vertical planes for surveying, with applications extending to specialized fields such as meteorology and rocket launch technology. It features a dual-line LCD display, a telescope with 30X magnification and a 45mm objective lens, and offers an angle measurement accuracy of 2 arc-seconds via photoelectric detection with an incremental encoder.
The electronic digital theodolite is a precision instrument for measuring angles in the horizontal and vertical planes, mainly used for surveying applications, and has also been adapted for specialized use in fields like meteorology and rocket launch technology.
Display:- LCD Display Type: LCD segment, 2 sides, in two lines
- Plate Level: 30" per 2mm (30"/2mm)
- Circular Level: 8" per 2mm (8'/2mm)
- Magnification: 30X
- Objective Lens: 45mm
- Overall Length: 157mm
- Stadia Ratio: 100
- Stadia Constant: 0
- Electronic Angle Measurement: Reading System Photoelectric detection by incremental encoder
- Diameter of Circle (Vhz): 79mm
- Image: Erect
- Field of View: 1 deg 30"
- Minimum Focus: 1.4m
- Resolving Power: 3.0'
- Minimum Reading: 1"/5" (Selectable)
- Accuracy: 2"
- Horizontal Angle: Dual
- Vertical Angle: Dual
- System: Liquid-electric detection/plate level selectable
- Working Range: +3'
- Accuracy: Liquid electric detection 1"
- Plate Level: 30"/2mm
- Image: Erect
- Magnification: 3X
- Focusing Range: 0.5m - infinity
