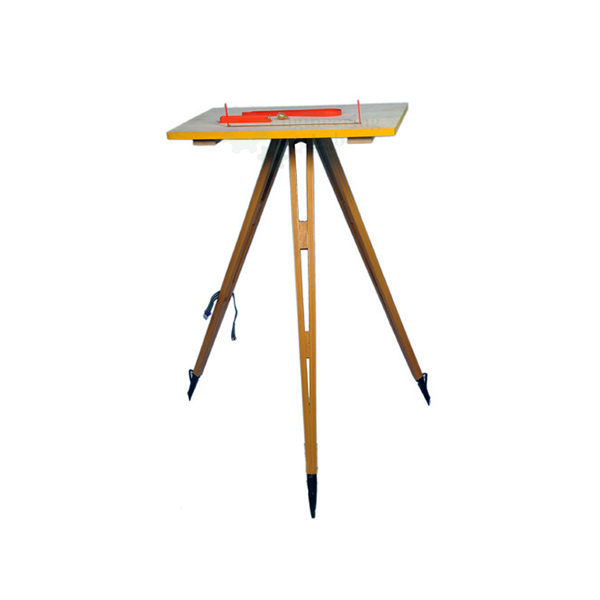

Plane Table Set

Plane Table Set

Product Code : EL-SLE-10987

Quick Answer: A Plane Table Set is used in surveying and related disciplines to provide a solid, level surface on which to make field drawings, charts, and maps. The table is set over a point and brought to a precise horizontal level, a drawing sheet is attached to its surface, and an alidade -- in the modern version supplied, a ruler fitted with a telescopic sight -- is used to sight objects of interest and construct a line on the drawing in the direction of that object.

A plane table set is used in surveying and related disciplines to provide a solid and level surface on which to make field drawings, charts, and maps. The plane table is set over a point and brought to a precise horizontal level, a drawing sheet is attached to the surface, and an alidade is used to sight objects of interest. We provide the modern type of the instrument, a ruler with a telescopic sight, that can be used to construct a line on the drawing in the direction of the object of interest.

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.

Last Updated: September 2026
