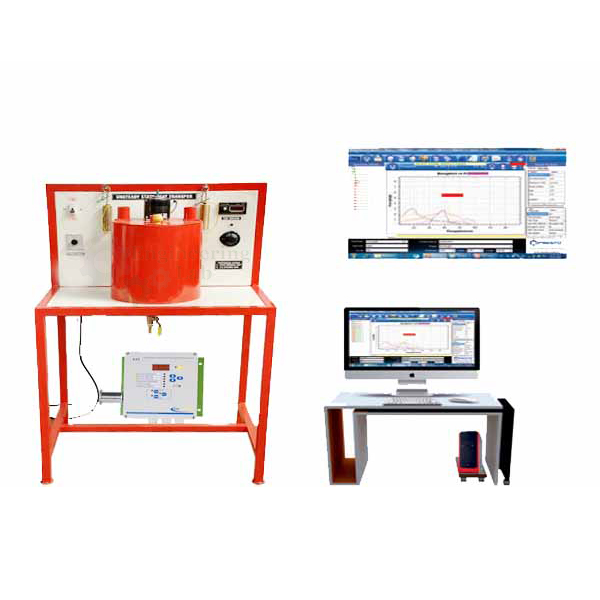

Computerized Steady State & Non Steady Heat Transfer
Product Code : EL-HAMTLE-10757
Computerized Steady State & Non Steady Heat Transfer (code EL-HAMTLE-10757) is a trainer for studying steady and transient heat conduction in cylindrical metal samples placed between an electrically heated heat source and a water-cooled heat sink. Each 40 mm diameter sample carries 12 type K thermocouples along its length, the 800 W heater holds the heating water at a set point within 20 to 85 °C, and temperatures, heating power and cooling water flow rate are shown digitally and sent to a PC via USB.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Steady and transient heat conduction in metals |
| Arrangement | Cylindrical metal samples inserted between a heat source and a heat sink |
| Heat source | Heating water kept at a constant temperature by an electric controller |
| Heat sink | Water-cooling system |
| Cooling water supply | Elevated tank for a constant cooling water flow rate |
| Temperature jump | Generated by regulating the cooling water flow |
| Measuring points | 12 in every sample, recording the core temperature with as little influence as possible |
| Displays | Sample, heating water and cooling water temperatures, electrical heating power and cooling water flow rate, shown digitally on the switch cabinet |
| PC connection | USB; analysis software included |
| Software outputs | Thermal conductivity; transient temperature distribution in the sample over time and place; temperature/time profiles |
| Heater | |
| Output | 800 W |
| Temperature | 20–85 °C |
| Samples, 40 mm diameter | |
| Long samples | 3 × 450 mm: copper, aluminium, brass |
| Short samples | 2 × 300 mm: steel, stainless steel |
| Tanks | |
| Heating tank | Approx. 2 L |
| Cooling tank | Approx. 0.5 L |
| Elevated tank | Approx. 6 L |
| Temperature sensors | |
| Along the sample | 12 × thermocouple type K |
| Cooling water | 2 × Pt100 |
| Heating water | 1 × Pt100 |
| Measuring ranges | |
| Temperature | 14 × 0–100 °C |
| Power | 0–1000 W |
| Flow rate | 0.1–2.5 L/min |
| Requirements, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; 230 V, 60 Hz, 1 phase; 120 V, 60 Hz, 1 phase |
| Dimensions (L × W × H) | Approx. 1200 × 800 × 1600 mm |
| Weight | Approx. 120 kg |
| Supply | |
| Product code | EL-HAMTLE-10757 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Steady State & Non Steady Heat Transfer Used For?
Heat conduction is the transport of heat between molecules driven by a temperature difference. In steady conduction the temperatures along a bar stay constant, and the gradient they form, together with the heat flow, gives the thermal conductivity of the metal; in transient conduction the temperatures change with both time and position. Students insert a copper, aluminium, brass, steel or stainless steel sample, set the heating water temperature and let the elevated tank feed cooling water at a steady rate, then record the 12 thermocouple readings once they settle. Changing the cooling water flow creates a temperature jump, and the PC plots how the temperature profile develops.
What to Specify When Ordering
- Quantity — how many conduction trainers are needed.
- Electrical version — one of the single-phase options: 230 V 50 Hz, 230 V 60 Hz or 120 V 60 Hz.
Frequently Asked Questions
What is the difference between steady and transient heat conduction?
In steady conduction heat is supplied continuously and evenly, so temperatures stay constant; in transient conduction the temperature in the body changes with both position and time.
Which metal samples are supplied?
Samples are 40 mm in diameter: three are 450 mm long, in copper, aluminium and brass, and two are 300 mm long, in steel and stainless steel.
How is the temperature along the sample measured?
Each sample has 12 measuring points with type K thermocouples, designed to influence the temperature as little as possible so that the core temperature is recorded. Pt100 sensors measure the heating and cooling water.
How is a constant cooling water flow obtained?
An elevated tank of approx. 6 L feeds the water-cooled heat sink at a constant flow rate, and adjusting this flow produces a temperature jump for transient tests.
What can the software show?
Measured data are sent via USB to a PC, where the included software calculates thermal conductivity and displays the transient temperature distribution in the sample over time and place.
How large is the trainer?
It measures approx. 1200 × 800 × 1600 mm and weighs approx. 120 kg, and it runs on a 230 V or 120 V single-phase supply.
OEM Manufacturer
Buyers of the Computerized Steady State & Non Steady Heat Transfer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests heat and mass transfer apparatus for conduction, convection, radiation and heat exchangers, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
