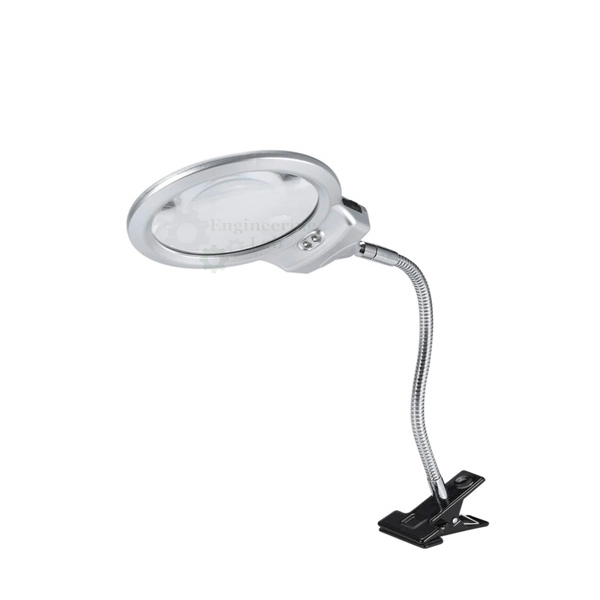

Table Magnifying Lens
Product Code : EL-MAILE-10831
Table Magnifying Lens (code EL-MAILE-10831) is a clamp-mounted magnifier on a bendable soft metal hose, used for close viewing of fine print and small detailed work. It carries two lenses, 2.25x with a 9 cm (4 inch) diameter and 5x with a 2.2 cm (0.9 inch) diameter, plus 2 LED lights, in an acrylic and ABS body with a 4.2 × 8 × 4 cm clamp and a total length of 46 cm (18 inch).
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Lightweight clamp-on magnifier with bendable hose |
| Magnification | 2.25x and 5x (2 magnifiers) |
| Lens diameter | 2.25x lens: 9 cm / 4 inch; 5x lens: 2.2 cm / 0.9 inch |
| Lighting | 2 LED lights for working in insufficient light |
| Lens frame | Protects the lens from damage during long-term use |
| Hose | Soft metal hose, bends freely to adjust lens height and position |
| Material | Acrylic and ABS |
| Clamp size | 4.2 × 8 × 4 cm / 1.7 × 3 × 2 inch |
| Total length | 46 cm / 18 inch |
| Applications | Fine print in maps, newspapers, directories and legal documents; jewellery, coins, stamps, antiques and embroidery |
| Product code | EL-MAILE-10831 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Table Magnifying Lens Used For?
A magnifier lets fine detail be seen clearly by enlarging it, and a clamp-on version leaves both hands free for the work. The user fixes the clamp to the edge of a table or bench, bends the soft metal hose to bring the lens to the right height and position over the object, and switches on the 2 LED lights when the room light is insufficient. The 2.25x lens gives a wider view for reading maps, documents and directories, while the smaller 5x lens is used for close inspection of coins, stamps, jewellery and embroidery.
What to Specify When Ordering
- Quantity — the number of magnifiers required.
Frequently Asked Questions
What magnifications does it offer?
Two lenses are fitted: a 2.25x lens of 9 cm (4 inch) diameter and a 5x lens of 2.2 cm (0.9 inch) diameter.
How is the magnifier mounted?
It fixes to a table or bench edge with a clamp measuring 4.2 × 8 × 4 cm (1.7 × 3 × 2 inch), and the soft metal hose bends to set the lens height and angle.
Does it have its own lighting?
Yes. 2 LED lights are built in so that work can be carried out where the surrounding light is insufficient.
Which materials is the magnifier made from?
The body is made of acrylic and ABS material, and a frame around the lens guards it against damage in long-term use.
What kinds of work is it used for?
It is used to enlarge fine print in maps, newspapers, directories and legal documents, and for fine work on jewellery, coins, stamps, antiques and embroidery.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Table Magnifying Lens at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
