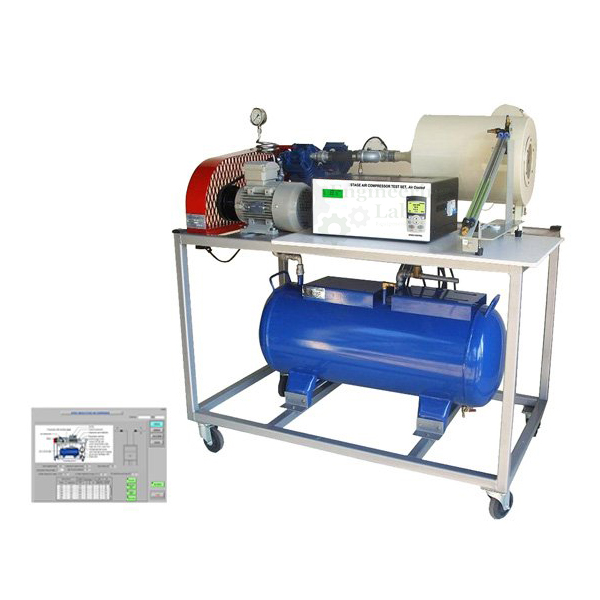

Single Stage Air Compressor Setup with Data Acquisition
Product Code : EL-TELE-10708
Quick Answer: The Single Stage Air Compressor Setup with Data Acquisition is a complete compressed air generation system combining a single-stage piston compressor with a drive unit, used to demonstrate how compressed air generation plants work as an energy source for applications such as powering machines in the mining industry, pneumatic control systems in assembly facilities, or tyre inflation units at petrol stations. The drive unit powers the compressor via a V-belt; air is drawn into an intake vessel where it settles before being compressed and delivered to a pressure vessel, from where it is available as a working medium, with a blow-off valve and silencer, a pressure switch with a solenoid valve, and a safety valve completing the system.
The single-stage piston compressor and the drive unit together form a complete compressed air generation system. Generation of compressed air for industrial and commercial purposes, in areas where compressed air is used as a source of energy, requires what are known as compressed air generation plants, and a central part of these systems is the compressor, which is responsible for generating a pressure increase of the air by means of mechanical energy. Compressed air generation plants are used to power machines in the mining industry, for pneumatic control systems in assembly facilities, or as tyre inflation units at petrol stations.
The drive unit powers the compressor by means of a V-belt, and the speed of the compressor can be set. The air is sucked into the intake vessel, where it settles before it is compressed inside the compressor, and the compressed air is then delivered to a pressure vessel and is available as a working medium. To set a steady flow-operating mode, the compressed air can be discharged over a blow-off valve with a silencer, and a pressure switch with a solenoid valve for limiting the pressure, along with a safety valve, complete the system.
FEATURES:
Determination of the characteristic curve
Determination of the volumetric efficiency
Determination of the mechanical efficiency
Setup and operating behavior of a compressed air generation system with single-stage piston compressor
SPECIFICATION:
Compressor, 1 cylinder, single-stage :
Power consumption: 750W
Borehole: 65mm
Stroke: 46mm
Safety valve: 10bar
Nominal speed: 980min-1
Positive operating pressure: 8bar
Pressure: 10bar
Intake capacity: 150L/min at 8bar
Pressure vessel :
16 bar
Volume: 20L
Intake vessel: 20L
Measuring ranges :
Temperature: 1x 0…200°C / 1x 0…100°C
Pressure: 0…16bar / -1…1bar
Flow rate: 0…150L/min
Speed: 0…1000min-1
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 900x 800 x 1600 mm
Weight (approx.): 130kg
