Axial Flow Turbine Test Bed
Product Code : EL-TELE-10691
Quick Answer: The Axial Flow Turbine Test Bed is a self-contained jet-engine test rig built around a single-stage radial compressor, an annular combustion chamber and a low-mass, high-performance axial flow turbine, letting students safely start, run and measure a real gas turbine engine in the lab. It mounts the engine on a single-pivot thrust frame for accurate thrust measurement, runs under a preprogrammed electronic controller with automatic start-up and shutdown, and logs data to a PC over a single USB link, all behind a removable, transparent polycarbonate safety screen.

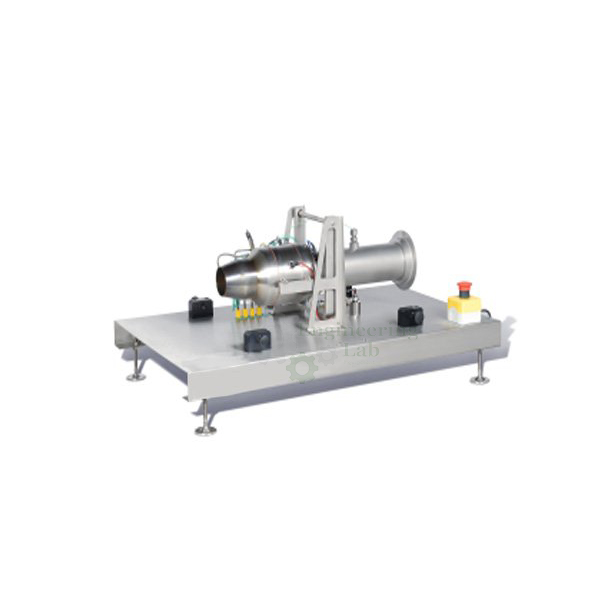

The Axial Flow Turbine Test Bed is an experimental axial flow engine-start turbine comprising a single-stage radial compressor, an annular combustion chamber and a low-mass, high-performance axial flow turbine. The engine is integrated into a sturdy metal frame that holds it firmly while enabling accurate measurement of the thrust it produces, and its inlet has been replaced with a custom-fabricated frontal duct so that the air mass flow rate can be measured accurately. A tough, transparent polycarbonate screen makes the apparatus completely safe while still providing excellent visibility of the engine in use, and the screen is removable to allow full access to the engine and instrumentation. An electronic preprogrammed controller constantly supervises the engine to ensure safe operating conditions at all times; the engine is easy to start and stop from the software interface, with automatic, optimal start-up and power-down sequences already set to assure minimum mechanical stresses, and there is no requirement for a compressed air supply or propane gas to start it. The engine software runs on a personal computer, requiring only a single USB interface between the electronic console and the PC, which enables simple installation into a test cell or soundproof enclosure.
FEATURES:
Complete aeronautical axial flow gas turbine engine
Full instrumentation and sensors
Easy installation into a test cell (single USB interface)
High-performance centrifugal compressor
Simple ignition system, based on a common Rossi R8 glow plug
Data acquisition and educational software included
Small-scale equipment minimizes laboratory space needed
Fully tested for high performance and safety
High maximum RPM
Fast response to speed changes
Single point pivot on engine mounting enables accurate thrust measurement
No need for external lubrication system; the lubricant is mixed with the fuel
No need for external battery and charger
Can be fuelled with common paraffin or kerosene – no need for difficult-to-find aviation fuel
Tough, transparent polycarbonate safety screen
An optional floor-standing frame is available to house the unit together with its fuel tank and electronic console
SPECIFICATIONS:
Thrust: 200N typical
Exhaust gas temperature: 800°C typical
Mass flow: 450 g/s
Ignition system: Glow plug
Compressor type: Single-stage radial
Turbine type: Single-stage, low-mass axial flow
Engine rpm: 105,000rpm typical
Engine mount: Single pivot point
Typical fuel – one of the following choices:
Paraffin
Jet A-1
JP-4/Kerosene
DIMENSIONS AND WEIGHT:
L x W x H: 880 x 510 x 1185 mm
Weight (approx.): 150 kg
