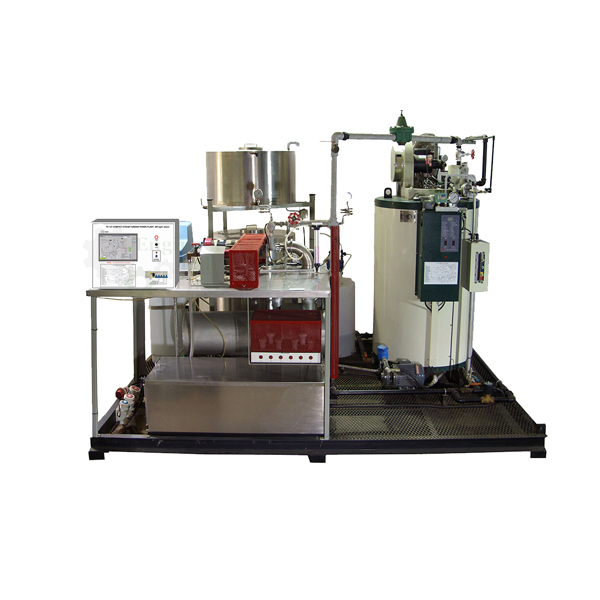

Steam Turbine Power Plant Setup
Product Code : EL-TELE-10711
Quick Answer: The Steam Turbine Power Plant Setup is a laboratory training plant that demonstrates a complete small-scale steam power cycle, from an oil-fired steam boiler and superheater through a turbine-generator set to a condenser and feed water treatment system. It lets students load the turbine with a generator and study how turbine output relates to speed and torque, while sensors record temperature, pressure, speed, and flow rate at all relevant points. The plant is PLC-controlled, includes a process schematic control panel, and can transmit measured data directly to a PC for analysis.
An oil-fired once-through steam boiler produces wet steam that is turned into superheated steam by a super heater; its short heat-up time makes rapid steam generation possible. Load is applied to the turbine with a generator, and the turbine output is determined by speed and torque. The feed water circuit is fitted with a complete water treatment system consisting of a regenerable ion exchanger and chemical dosing, and downstream of the turbine, the steam is condensed and returned to the boiler.
Sensors record the temperature, pressure, speed, and flow rate at all relevant points, and the measured values can be read on digital displays or transmitted directly to a PC via USB, with data acquisition software included. The control panel includes a clear process schematic of the plant, and the system is monitored and controlled by a programmable logic controller (PLC). The experimental plant is built in accordance with statutory safety regulations and includes the mandatory safety facilities; the steam generator is type tested and does not require specific permissions. The plant can optionally be operated with a cooling tower.
FEATURES:
Steam power plant and its components
Start-up, operation and shut down of a steam power plant
Closed steam-water circuit with feed water treatment
Among others, determining:
Boiler efficiency
Mechanical/thermal efficiency of the turbine
Condenser efficiency
Specific fuel consumption of the plant
SPECIFICATION:
Steam generator :
Steam output: 200kg/h at 11bar
Pressure: 13bar
Fuel consumption: 12L/h
Heat-up time: 8min
Super heater :
Power: 7kW
Single-stage axial turbine with Curtis wheel and hydraulic speed regulator :
Power: max. 1,5kW at 3000min-1
Water-cooled condenser :
Cooling capacity: 98kW
Transfer surface: 2,5m2
Measuring ranges :
Temperature: 9x 0…400°C, 2x 0…100°C
Flow rate: 0…167L/min (cooling water)
Pressure: 3x 0…16bar, 1x ±1bar
Torque: 0…20Nm
Speed: 0…4000min-1
400V, 50Hz, 3 phases
400V, 60Hz, 3 phases, 230V, 60Hz, 3 phases
DIMENSIONS AND WEIGHT:
L x W x H: 3500x 2500 x 2250 mm
Weight (approx.): 2250 KG
