Computerized Centrifugal Pump Trainer
Product Code : EL-TMLE-10686

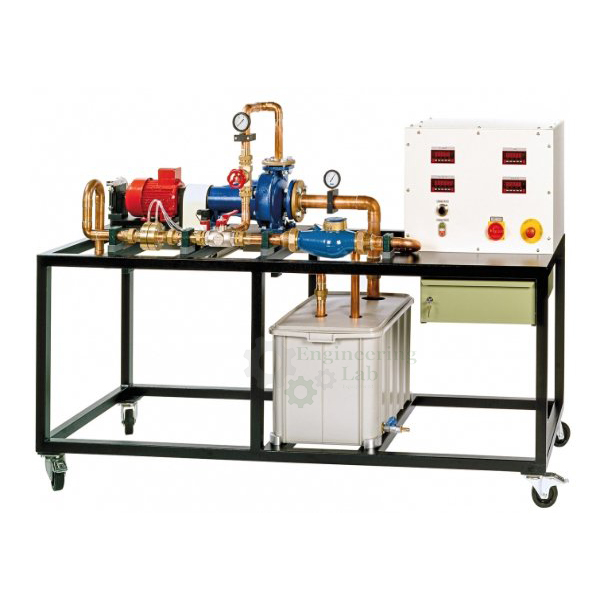

Computerized Centrifugal Pump Trainer (code EL-TMLE-10686) is a trainer built around a standard industrial centrifugal pump in a closed water circuit, used to record pump and system characteristic curves and calculate efficiencies. The pump gives approximately 15 m³/h at up to approximately 16 m head from a 1.1 kW variable speed three-phase motor running at 0–2400 min-1, and speed, torque, electrical power and flow rate appear on a digital display on the switch cabinet.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Pump | Standard centrifugal pump built according to industrial standards |
| Water circuit | Closed |
| Drive | Three-phase motor, speed set with frequency converter |
| Speed measurement | Inductive, non-contact position encoder on the shaft |
| Torque measurement | Drive motor in pendulum bearing with force sensor; mechanical drive power determined |
| Pressure | Manometers at pump inlet and outlet |
| Flow measurement | Electromagnetic flow rate sensor, or differential pressure measurement on an orifice plate flow meter |
| Display | Speed, torque, electrical power consumption of the pump and flow rate on a digital display on the switch cabinet |
| Experiments | Principle of operation of a centrifugal pump, pump characteristics, system characteristics, calculation of efficiencies |
| Specification | |
| Tank volume | 96 L |
| Power supply | 230 V, 50 Hz, 1 phase |
| Alternative supply | 230 V, 60 Hz, 3 phases |
| Centrifugal pump | |
| Max. flow rate | Approx. 15 m³/h |
| Max. head | Approx. 16 m |
| Drive motor with variable speed | |
| Power output | 1.1 kW |
| Speed range | 0–2400 min-1 |
| Measuring ranges | |
| Pressure | One -0.6 to 0 bar, one 0 to 2.5 bar |
| Flow rate | 5–600 L/min |
| Speed | 0–5000 min-1 |
| Torque | 0–10 Nm |
| Power consumption | 0–2.2 kW |
| Size | |
| Dimensions | 2000 × 750 × 1480 mm (L × W × H) |
| Weight | Approx. 215 kg |
| Supply | |
| Product code | EL-TMLE-10686 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Centrifugal Pump Trainer Used For?
A centrifugal pump raises pressure by flinging water outwards from a spinning impeller, and its characteristic curves show how head, power and efficiency change with flow rate and speed. Students set a motor speed with the frequency converter, vary the operating point, and read the inlet and outlet manometers, the flow rate from the electromagnetic sensor or the orifice plate differential pressure, and the speed and torque from the encoder and the pendulum-mounted motor. Plotting these gives the pump characteristics; the system characteristics show the head the pipework demands, and efficiencies come from comparing hydraulic power with the mechanical and electrical power drawn.
What to Specify When Ordering
- Quantity — the number of centrifugal pump trainers needed.
- Power supply — 230 V, 50 Hz, 1 phase, or 230 V, 60 Hz, 3 phases.
Frequently Asked Questions
What is meant by a standard pump?
Standard pumps are built according to industrial standards that define rating schemes and key dimensions, so pumps from different manufacturers can be exchanged without replacing the piping and ground plate.
How is the drive power determined?
The drive motor is mounted in a pendulum bearing so its torque is measured with a force sensor; with the speed from the non-contact encoder, this gives the mechanical drive power.
What are the two ways of measuring flow?
Flow is measured with an electromagnetic flow rate sensor and can also be found from a differential pressure measurement on an orifice plate flow meter, over a range of 5–600 L/min.
What does the pump deliver?
The standard centrifugal pump gives a maximum flow rate of approximately 15 m³/h and a maximum head of approximately 16 m, driven by a 1.1 kW motor at 0–2400 min-1.
What appears on the digital display?
The digital display on the switch cabinet shows speed, torque, the electrical power consumption of the pump and flow rate, while manometers show inlet and outlet pressure.
How big is the trainer and what tank does it use?
It measures 2000 × 750 × 1480 mm, weighs approximately 215 kg and works from a 96 L tank in its closed water circuit.
