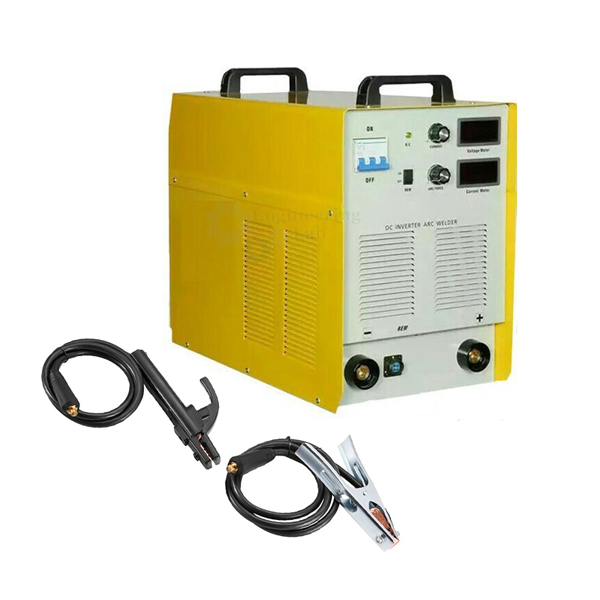

Arc Welding Machine
Product Code : EL-WTMAA-10598
Quick Answer: The Arc Welding Machine is an inverter-based welder built with an inverter frequency of up to 20KHZ for a quick dynamic response and high reliability in industrial welding processes. It delivers a high duty cycle and powerful welding capacity, maintaining a stable welding status even with a 100 metre output cable, while its auto-compensation function counters power-supply fluctuations and its anti-stick function operates across the whole current range. The machine is adaptable to down-orientation welding with cellulose electrodes and performs well across low/medium steels, low alloy steels, and stainless steel using different kinds of basic electrode, with an output current range of 40-400 Amp on a 3-phase, 50/60 Hz supply.
Features:
Made in the advanced inverter technology with an inverter frequency up to 20KHZ, quick dynamic response in the inside electronic communication, high reliability and well-functions in welding process; capable of satisfying the tough requirements in the welding for the industrial engineering; highly reliable welding equipment.
High Duty Cycle and Powerful Welding Capacity, even maintain a stable welding status under the supply of 100 metre output cable.
Auto-Compensation-Function as to the power supply fluctuation, strong adaptability of anti-power-supply fluctuation and good shape seam; Excellent Anti-Stick Function within the whole current range.
Adaptable in the down-orientation welding with the cellulose electrode; adaptable in the welding application in different electrodes, especially good for the different low/medium steels, low alloy steels and stainless steel in different kinds of basic electrode.
Technical Specifications:
Frequency: 50/60 Hz
Phase: 3
Output Current Range: 40-400 Amp
Duty Cycle (%): 60
Housing Protection Grade: IP21
No Load Voltage: 68 V
Weight: 33 Kg
Efficiency: 85%
Dimensions: 21.5x11x21.5 Inch
Power Factor: 0.93
Rated Input Current: 27.6 Amp
Current: 400 Amp
