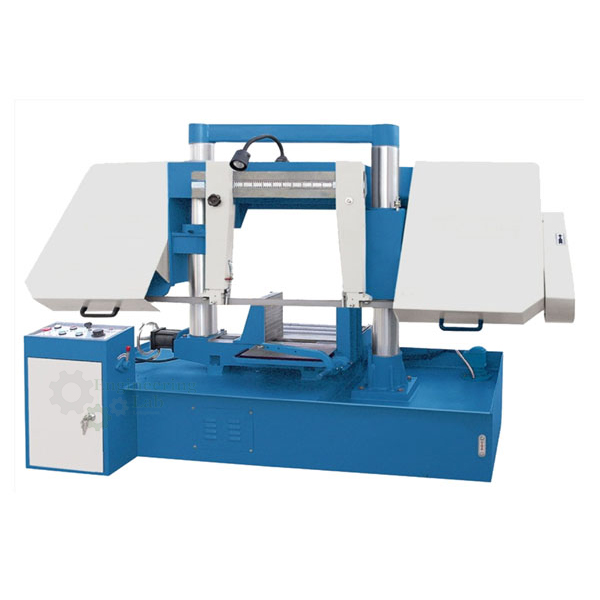

Bandsaw Machine

Product Code : EL-WTMAA-10463

Bandsaw Machine (code EL-WTMAA-10463) is a band sawing machine for workshop sawing, with a stress relieved fabricated steel structure, a hard chrome plated ground column and a worm gear box, offering flexible sawing modes that combine manual and automatic operation. Automatic height adjustment of the saw frame, variable pressure control for the cutting feed and an auto cutting stop are worked from a push button operating panel, while blade tensioning and material feeding are manual.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Bandsaw Machine Used For?

A band saw cuts with a continuous toothed blade running round two wheels, which gives a narrow cut and a steady cutting action on the stock. The operator feeds and positions the material by hand, tensions the blade and sets the moveable blade support guide close to the work, then uses the push button panel to run the cut. Automatic height adjustment brings the saw frame to the work, the variable pressure control sets how hard the blade is fed into the cut, and the auto cutting stop ends the cycle when the cut is through.

What to Specify When Ordering

• Quantity — the number of bandsaw machines required.

Frequently Asked Questions

Can the saw run in automatic mode?
Sawing modes are flexible, combining manual and automatic operation: saw frame height adjustment and the cutting stop are automatic, while the material is fed by hand.

How is the cutting feed controlled?
A variable pressure control sets the force with which the blade is fed into the cut, and an auto cutting stop ends sawing once the cut is complete.

How is the blade tensioned and guided?
Blade tension is set with a manual tensioning arrangement, and a moveable blade support guide can be positioned to support the blade close to the work.

What is the construction of the machine?
It has a stress relieved fabricated steel structure, a hard chrome plated ground column and a worm gear box, with a moveable blade support guide.

Why is the fabricated structure stress relieved?
Stress relieving removes the internal stresses left by welding a fabricated structure, so the frame does not distort over time and keeps its alignment.

OEM Manufacturer

Buyers of the Bandsaw Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests workshop machines, tools and accessories for engineering training workshops, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Workshop Tools and Machines

• Pillar Drilling Machine — column type drilling machine with 25 mm maximum capacity for holes in different work materials.
• Power Press Machine — all steel frame mechanical power press with adjustable stroke, pin clutch and alloy steel crank shaft.
• Lathe Machine — metal-cutting workshop lathe with cast bed, headstock, saddle and plinth, ball screws and centralised lubrication.

See the full Workshop Tools, Machines and Accessories range or all Mechanical Engineering Lab Equipment.

Request a Quote

For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of bandsaw machines required and your delivery location through the contact page, or add the Bandsaw Machine to the enquiry cart from this page.
