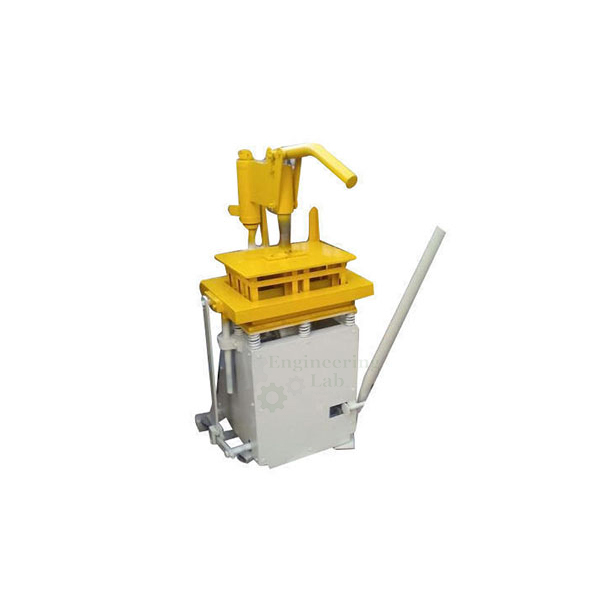

Block Making Machine Hand Operated
Product Code : EL-WTMAA-10587
Block Making Machine Hand Operated (code EL-WTMAA-10587) is a vibration-type machine used to mould paver blocks, with a 1.5 HP single or three phase bottom vibrator motor. Its moulding area is 375 × 600 mm, it makes 4 blocks per stroke or 800-1000 blocks per shift, the vibration amplitude is adjustable and the machine weighs 450 kg.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Moulding paver blocks |
| Bottom vibrator | 1.5 HP motor, single or three phase |
| Vibration | 6000 Hz, amplitude adjustable |
| Output per stroke | 4 paver blocks |
| Output per shift | 800-1000 blocks |
| Moulding area | 375 × 600 mm |
| Weight | 450 kg |
| Product code | EL-WTMAA-10587 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Block Making Machine Hand Operated Used For?
Paver blocks gain their density from vibration, which settles the mix in the mould and drives out trapped air before the block is released. On this hand operated machine the operator fills the mould, the bottom vibrator compacts the material while the operator works the machine by hand, and 4 blocks are produced with each stroke. The amplitude of vibration can be adjusted to suit the mix, a shift's work produces 800-1000 blocks, and the moulding area is 375 × 600 mm.
What to Specify When Ordering
- Quantity — the number of hand operated block machines needed.
- Vibrator motor — single phase or three phase supply for the 1.5 HP bottom vibrator.
Frequently Asked Questions
How many blocks does it produce?
Each stroke turns out 4 paver blocks, and the output over one shift is 800-1000 blocks from the 375 × 600 mm moulding area.
What powers the vibration?
A 1.5 HP bottom vibrator motor, available for single or three phase supply, provides the vibration, and its amplitude can be adjusted.
How heavy is the machine?
The machine weighs 450 kg, which is useful to know when planning its transport and the floor on which it will stand.
Why is vibration used in block making?
Vibration settles the mix into every part of the mould and drives out trapped air, giving denser, well-formed blocks once they are released and cured.
OEM Manufacturer
The Block Making Machine Hand Operated is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests workshop machines, tools and accessories for engineering training workshops for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
