Air Entertainment Meter

Product Code : EL-CTLE-10931

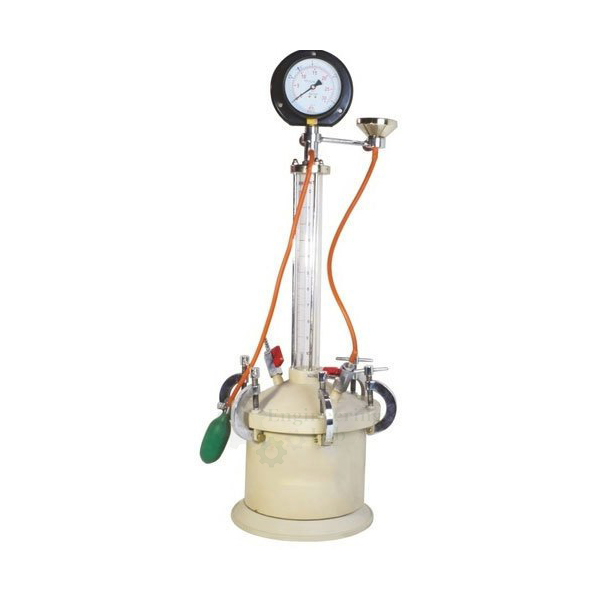

Air Entertainment Meter (code EL-CTLE-10931) is a pressure-type apparatus for finding the air content of concrete, made with an air-tight flanged cylindrical bowl and a sealed conical cover. It comes in bowl capacities of 0.005, 0.007 and 0.01 cubic meter, has an air valve and a petcock on the cover, a pressure bulb for applying pressure and a pressure gauge for recording it, and stands on a flat base.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Air Entertainment Meter Used For?

Small air bubbles deliberately entrained in concrete help it survive repeated freezing and thawing, yet surplus air weakens the hardened concrete, so the air content is kept within the mix limits. The bowl is filled with compacted concrete and the conical cover is clamped and sealed onto it; the space above the concrete is filled with water using the petcock and air valve, and pressure is applied with the pressure bulb. The drop in pressure shown on the gauge relates to the volume of air in the concrete. The standards listed are IS 1199 1969 and BS 1881-106.

What to Specify When Ordering

• Quantity — the number of air meters required.
• Bowl capacity — 0.005, 0.007 or 0.01 cubic meter.

Frequently Asked Questions

What bowl sizes are available?
The bowl is offered in capacities of 0.005, 0.007 and 0.01 cubic meter, each fitted with a sealed conical cover assembly.

How is pressure applied and read?
Pressure is applied to the sealed bowl through a pressure bulb on the conical cover, and the applied pressure is recorded on the pressure gauge.

What are the air valve and petcock for?
The air valve sits on the conical cover and the petcock lets water flow off, while the cover itself is fixed to the bowl and closed with a seal.

Which standards are listed for the meter?
The standards listed are IS 1199 1969 and BS 1881-106, and the whole unit is mounted on a flat base for use.

Why is the air content of concrete measured?
Entrained air improves the resistance of concrete to freezing and thawing, while too much air reduces its strength, so the content is checked against the requirements of the mix.

How is the meter ordered?
Send an enquiry with the Add To Cart button on this page, or state the quantity and delivery location through the contact page.

OEM Manufacturer

Buyers of the Air Entertainment Meter deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Concrete Testing Equipment

• Concrete Impermeability Test Apparatus — water penetration tester clamping cement, mortar or concrete specimens of 150 mm and over between gasketed flanges.
• Laboratory Concrete Mixer — tilting steel drum concrete mixer, 55/110 litres, turned at 20-22 RPM by a 1½ HP motor.
• Vibrating Table — 500 × 500 mm vibrating table for 140 kg of moulds, 2600 to 3600 vibrations per minute.

See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of meters and the bowl capacity required and your delivery location through the contact page, or add the Air Entertainment Meter to the enquiry cart from this page.
