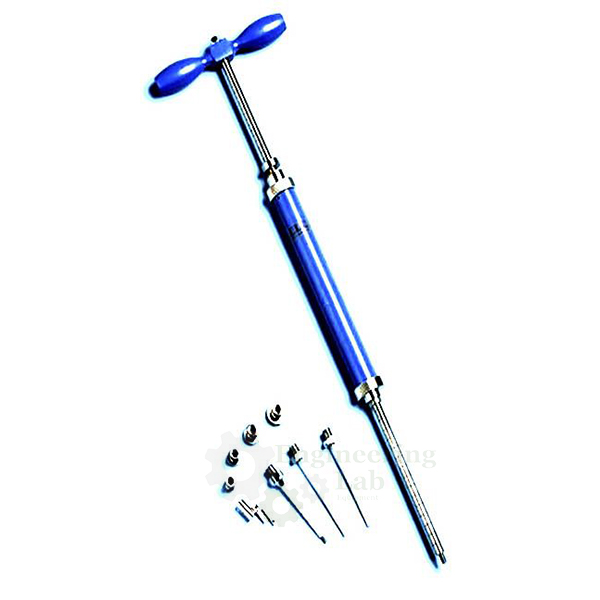

Concrete Penetrometer Spring Type
Product Code : EL-CTLE-10306
Quick Answer: The Concrete Penetrometer Spring Type is a spring-loaded penetrometer, graduated from 1 to 100 daN, used to find the rate of hardening of mortar sieved from concrete. It is supplied with a set of interchangeable needle points of varying area, a sliding ring that indicates the load/penetration reached, and a wooden carrying case, and it weighs approximately 5 kg. The unit conforms to ASTM, AASHTO and UNI standards, including AASHTO T197, UNI 7123 and ASTM C-403.
This model, which conforms to ASTM, AASHTO and UNI standards, consists of a spring loaded device graduated from 1 to 100 daN, supplied complete with a set of needle points of 650, 325, 160, 65, 32 and 16 mm2 area, with a sliding ring that indicates the load reached. It is supplied complete with a carrying case.
It is used for finding out the rate of hardening of mortar sieved from concrete, with a spring and a stem graduated from 0-70 kg x 1 kg, and six interchangeable penetration needles of areas 645, 323, 65, 32 and 16 mm sq. are provided, with needle shanks marked at every 12.5 mm. The penetration resistance is measured by the force exerted to penetrate the mortar by 25 mm and is indicated by a sliding ring on the stem, which is graduated, and the unit is supplied complete in a wooden carrying case.
Weight approx., 5 kg
Standards: AASHTO T197 | UNI 7123 | ASTM C-403
