Air Entrainment Meter
Product Code : EL-CTLE-10334

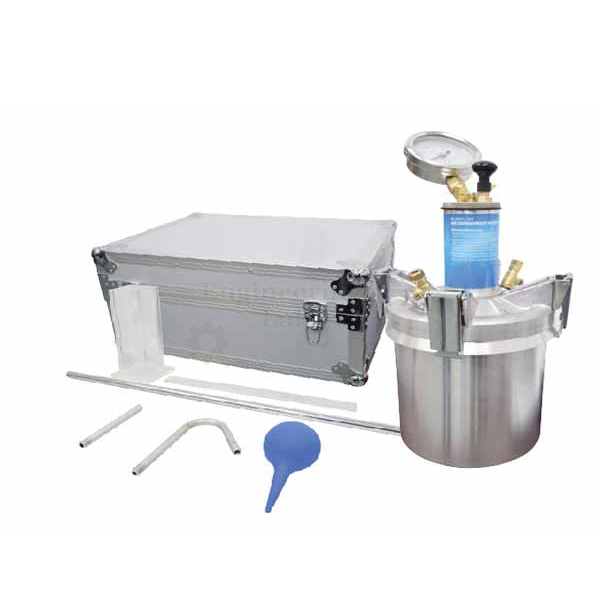

Air Entrainment Meter (code EL-CTLE-10334) is a pressure-type meter used to determine the air content of fresh concrete. It has a flanged cylindrical vessel of 7 or 8 liter capacity and a cover assembly with pressure gauge, air pump, valves and quick action clamping, and the gauge reads air content directly to the nearest 0.1% up to 6%, 0.2% from 6 to 8% and 0.5% from 8 to 15%.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining the air content of fresh concrete |
| Vessel | Flanged cylindrical vessel, 7 or 8 liter capacity |
| Cover assembly | Incorporates pressure gauge, air pump and valves |
| Clamping | Quick action clamping system |
| Barometric pressure | Not affected by changes in barometric pressure |
| Gauge reading | Direct, to the nearest 0.1% up to 6%, 0.2% from 6 to 8% and 0.5% from 8 to 15% |
| Standards | EN 12350-7, ASTM C231, AASHTO T152 |
| Supplied with | Straight edge; inner and outer (J-type) calibration pipes; tamping rod, 16 mm diameter × 600 mm; special carrying case |
| Ordered separately | Calibration vessels and compacting bar with square section |
| Product code | EL-CTLE-10334 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Air Entrainment Meter Used For?
Entrained air improves the resistance of concrete to freezing and thawing but lowers its strength, so the air content of a fresh mix is checked against the specified limits. The operator fills the vessel with concrete in layers, compacts each layer with the tamping rod, strikes off the top with the straight edge and clamps the cover in place; air is pumped into the chamber to a set pressure and released into the concrete, and the gauge then shows the air content directly. The calibration pipes are used to check the gauge, and readings do not change with barometric pressure.
What to Specify When Ordering
- Quantity — the number of air content meters required.
- Vessel capacity — the 7 liter or the 8 liter flanged vessel.
- Separate items — calibration vessels and a square-section compacting bar, which are ordered separately.
Frequently Asked Questions
What does the Air Entrainment Meter measure?
It determines the air content of fresh concrete, read directly from the pressure gauge on the cover assembly once the vessel has been filled and clamped.
How finely can the air content be read?
The gauge reads to the nearest 0.1% up to 6% air, to 0.2% between 6 and 8%, and to 0.5% between 8 and 15%.
Do changes in barometric pressure affect the reading?
No. The meter is not affected by changes in barometric pressure, which allows the air content to be read directly from the gauge.
What accessories come with it?
It is supplied complete with a straight edge, inner and outer (J-type) calibration pipes, a tamping rod 16 mm in diameter and 600 mm long, and a special carrying case.
What has to be ordered separately?
Calibration vessels and a compacting bar with a square section are not part of the standard supply and should be ordered separately when they are needed.
Which standards are listed for it?
The standards listed are EN 12350-7, ASTM C231 and AASHTO T152, and the vessel is offered in 7 or 8 liter capacity.
OEM Manufacturer
Buyers of the Air Entrainment Meter deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Concrete Testing Equipment
- Capping Set Vertical — upright-guided capping mould with 19 mm machined plate, cylinder carrier and ladle.
- Compression Testing Machine (Channel Type Load Frame) — motorised C channel compression tester with 20 cm gauge, slow/fast regulator and 50–3000 kN ranges.
- Flexure Testing Machine Electrical Cum Hand Operated — flexural strength tester with motor and hand pumping units, 0–100 kN gauge and overload cut-out.
- Flexure Testing Machine Digital — 100 or 200 kN automatic frame for flexural, transverse and indirect tensile tests on concrete units.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of meters and the 7 or 8 liter vessel size required and your delivery location through the contact page, or add the Air Entrainment Meter to the enquiry cart from this page.
