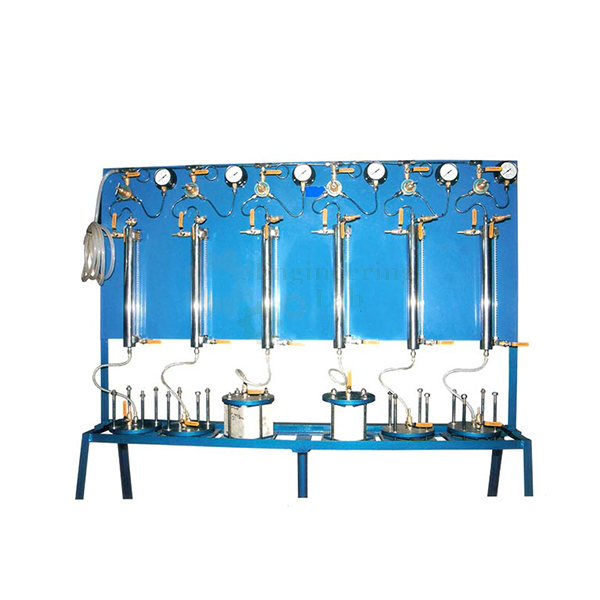

Concrete Impermeability Test Apparatus
Product Code : EL-CTLE-10292
Concrete Impermeability Test Apparatus (code EL-CTLE-10292) is used to find how deep water penetrates under pressure into specimens of cement, mortar and concrete, one of the main signs of a mix's durability. The specimen, a cube, cylinder or prism with an edge length or diameter of at least 150 mm, is clamped between two flanges sealed with special circular gaskets, and it may be cast in the laboratory or cut as a core from an existing structure.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Test | Depth of penetration of water under pressure |
| Materials tested | Cement, mortar and concrete specimens |
| Specimen shape | Cubic, cylindrical or prismatic |
| Specimen size | Length of edge or diameter not less than 150 mm |
| Specimen source | Cast in the laboratory, or cores cut from existing structures |
| Clamping | Between two flanges with special circular gaskets |
| Standards | IS 3085, TS EN 12390-8, EN 12364, DIN 1048, ISO 7031 |
| Product code | EL-CTLE-10292 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Concrete Impermeability Test Apparatus Used For?
A concrete mix is designed for the durability that its site demands, and resistance to the flow of water through it is a key part of that durability, because water carries in the substances that attack concrete and steel. In the test the specimen is clamped between the two gasketed flanges and water under pressure is applied to one face; after the test period the specimen is split and the depth reached by the water is measured. Laboratory-cast specimens check a proposed mix, while cores show how the concrete in a finished structure performs. The standards listed are IS 3085, TS EN 12390-8, EN 12364, DIN 1048 and ISO 7031.
What to Specify When Ordering
- Quantity — the number of test units required.
- Specimens — whether cubes, cylinders or prisms (edge or diameter not less than 150 mm), cast or cored, are to be tested.
Frequently Asked Questions
What does the impermeability apparatus measure?
It determines the depth to which water under pressure penetrates into cement, mortar and concrete specimens, which shows how well the material resists the flow of water.
What specimen shapes and sizes can be tested for water penetration?
Cubic, cylindrical and prismatic specimens can be tested, provided the length of edge or the diameter is not less than 150 mm.
Can cores taken from an existing structure be tested?
Yes. Specimens may be cast in the laboratory or obtained by cutting cores out of existing structures, so both new mixes and built concrete can be assessed.
How is the specimen sealed during the test?
Two flanges carrying special circular gaskets grip the specimen between them, holding it in place and sealing it while the water pressure acts on it.
Which standards are listed for the impermeability apparatus?
The standards listed are IS 3085, TS EN 12390-8, EN 12364, DIN 1048 and ISO 7031 for this water penetration apparatus.
OEM Manufacturer
Buyers of the Concrete Impermeability Test Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Concrete Testing Equipment
- Laboratory Pan Mixer — double rotation laboratory concrete mixer with 15 litre effective capacity and tilting, removable drum.
- Cylindrical Mould — split cast iron mould for 150 mm diameter × 150 mm high concrete cylinders.
- V Funnel Test Apparatus — stainless steel V funnel on a stand with lidded orifice, filling hopper and base for SCC.
- Demountable Mechanical Strain Gauge — demountable digital strain gauge with 100 or 300 mm base, 0.001 mm resolution and 50 datum discs.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of units and the specimen shape and size to be tested and your delivery location through the contact page, or add the Concrete Impermeability Test Apparatus to the enquiry cart from this page.
