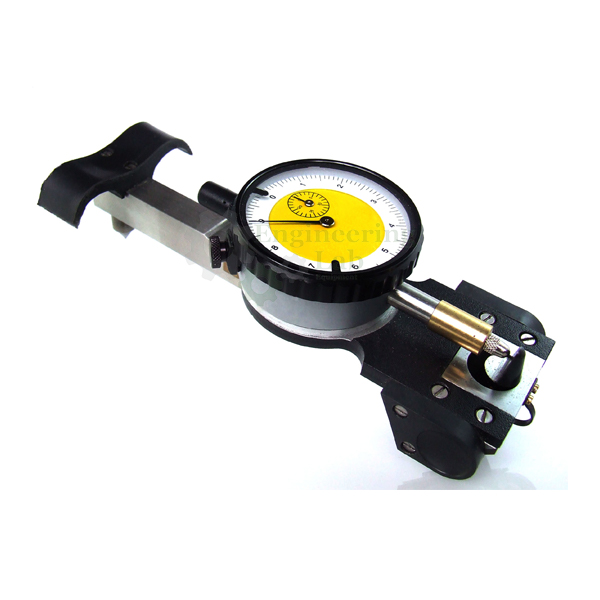

Demountable Mechanical Strain Gauge
Product Code : EL-CTLE-10311
Demountable Mechanical Strain Gauge (code EL-CTLE-10311) is an extensometer for determining length changes, designed in the first place for concrete structures but usable on other kinds of structure including steel. Two models are offered, with a 100 mm or a 300 mm measuring base and 5 mm range, each with a digital gauge of 0.001 mm resolution and PC output, and the set includes standard and calibration bars, 50 datum discs, adhesive compound and a carrying case.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining length changes on concrete structures, and on other structures including steel |
| Set contents | Extensometer with digital gauge, standard bar, calibration bar, 50 datum discs, adhesive compound for datum discs, carrying case |
| Gauge resolution | 0.001 mm (digital gauge) |
| PC connection | Output for PC connection; special cable required |
| Carrying case dimensions | 300 × 400 × 110 mm |
| Weight | Approx. 2.1 kg |
| Standards | BS 1881:206 |
| 100 mm model | |
| Measuring base | 100 mm |
| Range | 5 mm |
| 300 mm model | |
| Measuring base | 300 mm |
| Range | 5 mm |
| Supply | |
| Product code | EL-CTLE-10311 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Demountable Mechanical Strain Gauge Used For?
Strain in a concrete member, whether from load, shrinkage, creep or temperature, can be followed over long periods by measuring the distance between pairs of small datum discs fixed to its surface. The discs are stuck on with the adhesive compound at the 100 mm or 300 mm spacing of the chosen gauge, and the gauge, checked first against the standard and calibration bars, is seated on each pair in turn to read the distance digitally. Because the gauge is taken off between readings, one instrument serves many points, and readings can be sent to a PC. The method also works on steel and other structures. The standard listed for it is BS 1881:206.
What to Specify When Ordering
- Quantity — the number of strain gauge sets required.
- Measuring base — the 100 mm or the 300 mm model, both with 5 mm range.
- PC cable — the special cable needed for the PC connection output.
Frequently Asked Questions
Which measuring bases are available on the strain gauge?
Two models are offered: one with a 100 mm measuring base and one with a 300 mm measuring base, each with a 5 mm range.
What resolution does the digital gauge have?
Both models use a digital gauge with 0.001 mm resolution, and both have an output for PC connection, which needs a special cable.
What is included in the strain gauge test set?
The set contains the extensometer with digital gauge, a standard bar, a calibration bar, 50 datum discs, adhesive compound for fixing the discs, and a carrying case.
Can the strain gauge be used on steel as well as concrete?
Yes. It was first designed for use on concrete structures, but it can also be used on any other type of structure, including steel.
What are the case size and the weight?
The carrying case measures 300 × 400 × 110 mm, and the weight given for the set is approximately 2.1 kg.
Under which standard is the demountable gauge listed?
The standard listed for the demountable gauge is BS 1881:206, and its readings are taken between datum discs fixed with adhesive.
OEM Manufacturer
The Demountable Mechanical Strain Gauge is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Concrete Testing Equipment
- Pocket Concrete Penetrometer — pocket spring penetrometer with 0-50 kg/cm² scale and marker ring for initial set of mortar.
- Sand Absorption Cone and Tamper — conical metal mould with 12 ounce tamping rod for saturated surface-dry testing of sand.
- Digital Weighing Balance — single-block electronic balance with backlit display, menu-driven features and overload protection.
- Melting Pot — 2.4 litre thermostatic pot heating to 340 °C for melting cylinder capping compound.
- Digital Compression Testing Machine (Channel and Pillar Type) — electrically pumped compression tester with 4-digit kN indicator, overload cut-out and channel or pillar frame.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of sets, the measuring base (100 mm or 300 mm) and whether the PC cable is needed and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
