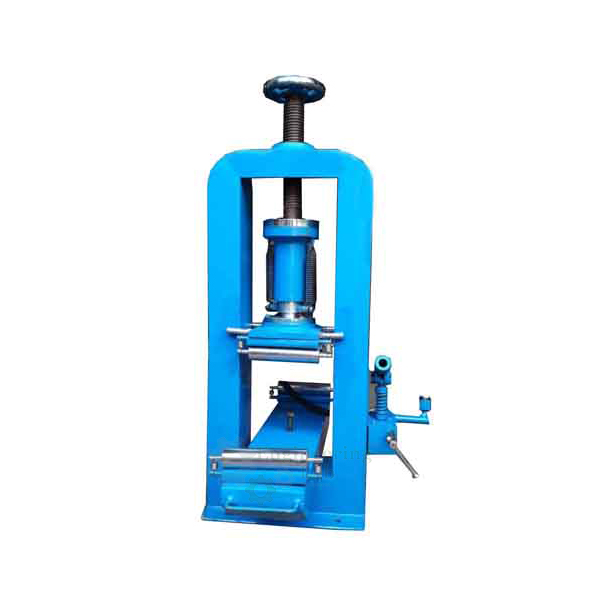

Flexure Testing Machine Hand Operated

Flexure Testing Machine Hand Operated

Product Code : EL-CTLE-10927

Quick Answer: The Flexure Testing Machine Hand Operated is precisely designed to test the accurate flexural strength of concrete beams, applying load from the top of the machine through a piston fitted on top, with a spacer for testing beam specimens of different sizes. It has a light weight, rugged high strength frame with a self-aligning roller assembly and a hydraulic jack fitted with a retraction spring, indicates load on a calibrated gauge with a range of 0 - 100 kN x 0.5 kN (0-10,000 kgf x 50 kgf), and tests beam sizes of 100 x 100 x 500 mm and 150 x 150 x 700 mm.

Specification:
The Flexure testing machine hand operated is precisely designed to test the accurate flexural strength of concrete beams. The design provides utmost rigidity throughout their working range. The load is applied by the top of the machine through the piston fitted on top. A spacer is provided for testing specimens of different sizes of beams.
The load is indicated on a calibrated gauge of range: 0 - 100 kN x 0.5 kN (0- 10,000 kgf x 50 kgf).
The machine has a light weight, rugged high strength frame with a self-aligning roller assembly and a hydraulic jack provided with a retraction spring, for testing 100 x 100 x 500mm and 150 x 150 x 700mm beams.

Standards: IS 516, BS 1881 and ASTM C 78

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Double Beam Screed, Compaction Factor Test Apparatus, Beam Mould, Volume Change Apparatus
