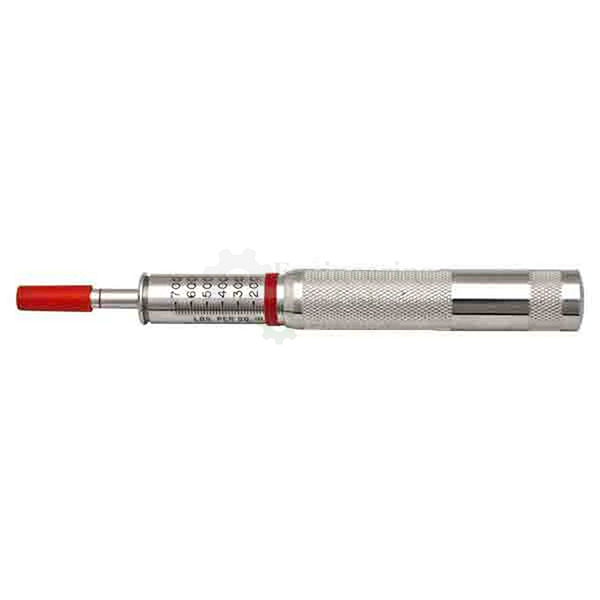

Pocket Concrete Penetrometer
Product Code : EL-CTLE-10316
Pocket Concrete Penetrometer (code EL-CTLE-10316) is a hand-held spring penetrometer used to find when concrete mortar has reached initial set, with a needle of 3/10 sq. cm face area whose point is part of a barrel housing a calibrated spring in a sleeve. Resistance is read on a direct reading scale of 0-50 kg/cm² with a marker ring that holds its position, and the unit comes in a carrying case.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Needle | Face area 3/10 sq. cm, graduated at a distance of 25 cm |
| Construction | Needle point integral with a barrel housing a calibrated spring confined in a sleeve |
| Scale | Direct reading, 0-50 kg/cm² |
| Marker ring | Holds its position when released |
| Initial set | Concrete assumed initially set when penetration resistance reaches 35 kg/cm² |
| Supplied in | Carrying case |
| Standards | ASTM C-403 |
| Product code | EL-CTLE-10316 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Pocket Concrete Penetrometer Used For?
Setting time tells the site or laboratory how long concrete stays workable and when finishing or joint work can begin. Mortar is sieved from the fresh concrete, and at intervals the needle is pressed steadily into it to the graduation mark; the calibrated spring compresses in proportion to the resistance and pushes the marker ring along the scale, where it stays after the needle is withdrawn so that the reading can be noted. When the resistance reaches 35 kg/cm² the concrete is taken as initially set. The standard listed for the pocket penetrometer is ASTM C-403.
What to Specify When Ordering
- Quantity — the number of pocket penetrometers required.
Frequently Asked Questions
What does the pocket penetrometer indicate?
It shows the resistance of concrete mortar to penetration, and the concrete is assumed to have reached initial set when that resistance reaches 35 kg/cm².
What is the reading range of the penetrometer scale?
Resistance is shown on a direct reading scale with a range of 0-50 kg/cm², and a marker ring keeps its position after release so the value can be read.
What size is the penetrometer needle?
The needle has a face area of 3/10 sq. cm and is graduated at a distance of 25 cm; its point forms part of the barrel that houses the calibrated spring.
Which standard is listed, and how is the penetrometer supplied?
ASTM C-403 is the standard listed for it, and the penetrometer comes complete in a carrying case for use on site or in the laboratory.
OEM Manufacturer
Buyers of the Pocket Concrete Penetrometer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Concrete Testing Equipment
- Poker Vibrator — internal vibrator for compacting concrete specimens, in four shaft length and tip diameter options.
- Crack Measuring Microscope — crack width microscope with 360° rotating eyepiece scale, adjustable lamp unit and knob focusing.
- Concrete Railway Sleepers and Bearers Static Testing Machine — 600 kN four column flexural frame for static load tests on concrete sleepers and bearers.
- Compression Testing Machine (Channel Type Load Frame) — motorised C channel compression tester with 20 cm gauge, slow/fast regulator and 50–3000 kN ranges.
- Flexure Testing Machine Electrical Cum Hand Operated — flexural strength tester with motor and hand pumping units, 0–100 kN gauge and overload cut-out.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of penetrometers required and your delivery location through the contact page, or add the Pocket Concrete Penetrometer to the enquiry cart from this page.
