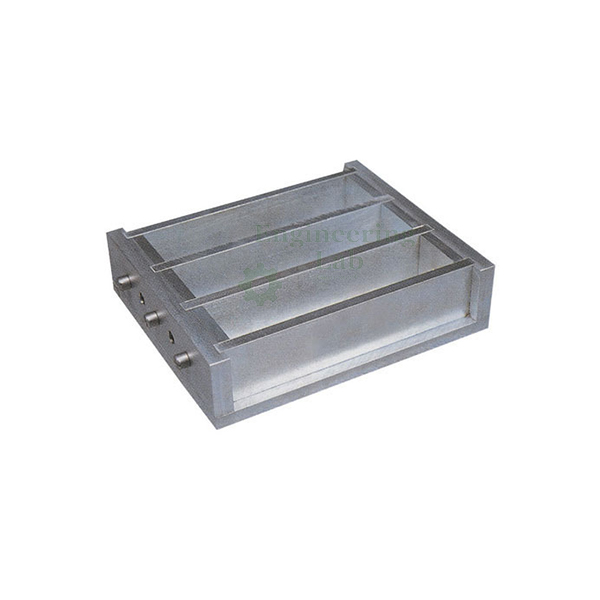

Prism Mould Three Gang

Product Code : EL-CTLE-10312

Prism Mould Three Gang (code EL-CTLE-10312) is a three-compartment mould for casting prism specimens of 40.1 × 40 × 160 mm, supplied complete with its base. Every mould is individually verified for dimensional tolerances, hardness, squareness, flatness and roughness, and all parts carry an identification number so that they go back together correctly.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Prism Mould Three Gang Used For?

Prisms of this size are cast from cement mortar and are later broken in bending and then in compression to give strength results for the binder being tested. The parts are assembled on the base by matching their identification numbers, so that each compartment keeps its checked dimensions, and the three compartments are filled and compacted together, giving three prisms from one batch. After setting, the mould is taken apart and the prisms are removed for curing and testing. The standards listed are IS 1727 1967, IS 4031 1968, ASTM C 394 and C 64.

What to Specify When Ordering

• Quantity — the number of three gang prism moulds required.

Frequently Asked Questions

What size prisms does the three gang mould make?
Each compartment casts a prism of 40.1 × 40 × 160 mm, and the three gang layout produces three prisms at a time.

How is each prism mould checked?
Each mould is verified individually, covering dimensional tolerances, hardness, squareness, flatness and roughness of its parts.

Why are the mould parts numbered?
All parts are marked with an identification number, so the mould can be assembled correctly with each piece back in its proper place after cleaning.

Does the prism mould come with a base?
Yes, a base is included with the mould, and the numbered parts are assembled on it before the compartments are filled.

Which standards are listed for the prism mould?
The standards listed are IS 1727 1967, IS 4031 1968, ASTM C 394 and C 64 for this three gang prism mould.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Prism Mould Three Gang at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
