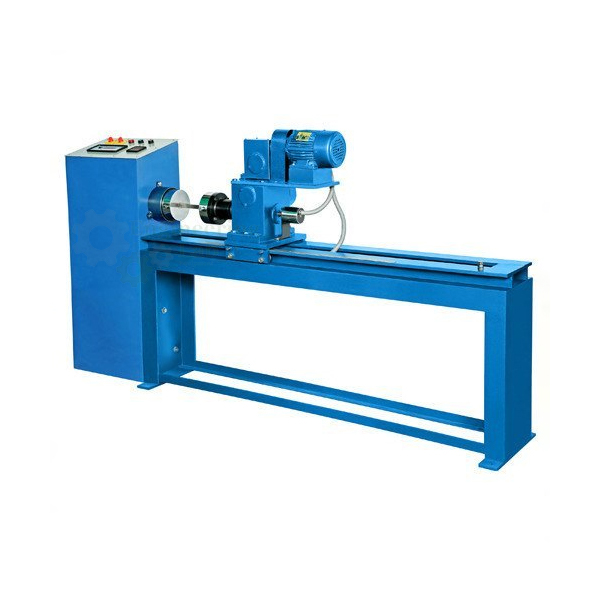

Torsion Testing Machine

Torsion Testing Machine

Product Code : EL-STLE-10959

Quick Answer: The Torsion Testing Machine performs twist and torsion tests on a variety of metal wires and tube sheet materials, using unique ‘TALON-CLAW’ grips for flat and round samples, a Pendulum dynamometer system for torque measurement with torque indication accuracy of approximately ± 1% of the real torque, torque-compensated motors, a gear box, and torsional speeds of 0.1/0.2 RPM with an optional variable speed drive.

Features
Unique 'TALON-CLAW' Grips for flat as well as round samples
The machine has load-unload feature
Torque Compensated Motors
Gear Box
Torsional Speed of 0.1/0.2 RPM
Variable Speed Drive (Optional)
Specification
The Torsion Testing Machine is designed and is used for the purpose of conducting the twist and the torsion test on a variety of metal wires as well as sheet materials of tube.
The torque measurement is done with the aid of Pendulum dynamometer System and the range of the torque can be adjusted accordingly.
The application of torque to the specimen is performed through geared motor box.
Additionally, an autographic recorded is also provided for ascertaining the relation between the angle and the torque of twist upon a particular request.
In particular, the accuracy of indication of the torque is approx. ± 1% of the real torque.
The entire system is moistened hydraulically for loading with any vibration.

For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
