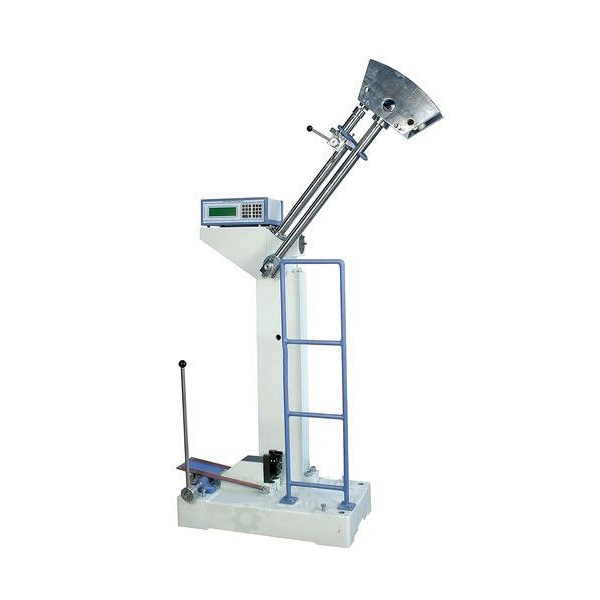

Impact Testing Machine Digital
Product Code : EL-STLE-10562
Quick Answer: The Impact Testing Machine Digital is a pendulum-principle machine suitable for Charpy and Izod impact tests on various materials, with an initial potential energy of 300 Joules for Charpy and 170 Joules for Izod at a resolution of 0.5 Joules, and an electronic digital display of results.
Electronic digital display :
Simple construction of pendulum izod so that izod or charpy machine, machine can build at sight
Interchangeable stickers for izod & charpy positions
Positive pendulum lock in izod & charpy positions
A braking arrangement for stopping the pendulum
Optional printer interface
Safety guard for protection
FEATURES:
Works on Pendulum principle.
Rigid designs of machine frame & other parts assure minimum energy absorption during fracture, which results in improved test accuracies.
The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat-treated.
Safety guard for the operator is provided.
Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a resolution of 0.5 Joules
Pendulum drop angle for Charpy is 140° & for Izod is 90°.
Suitable for Charpy & Izod Impact tests on various materials.
OPTIONAL ACCESSORIES:
Caliper gauge for checking V notch for Izod & Charpy.
Templates for checking 10 x 10 mm cross-section of Izod / Charpy test specimen.
Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius.
Self-centering tong for quick and accurate setting of Charpy test specimen.
‘V’ notch milling cutter.
Izod support for 0.450″ dia Izod round specimen.
For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
