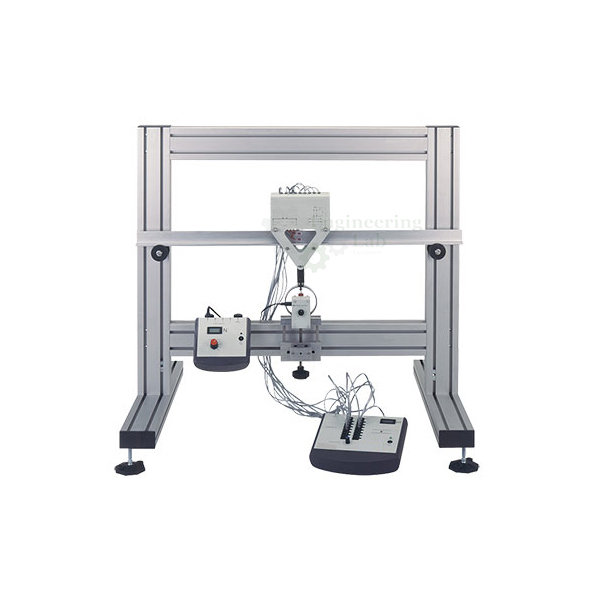

Bending Stress In a Beam with Data Acquisition
Product Code : EL-SELE-10575
Quick Answer: The Bending Stress In a Beam apparatus (with Data Acquisition) uses a T-beam mounted on a Structures Test Frame to investigate stresses and strains under bending loads, with a load cell and optional Digital Force Display to measure bending force, strain gauges and a digital strain bridge (compensated by dummy strain gauges) to measure strain, and an optional Structures Software package for automatic data acquisition and virtual experiments.
An experimental apparatus to investigate the stresses and strains within a structure in relation to bending loads.
The experiment hardware is a T-beam that fits onto a Structures Test Frame.
The equipment includes a lead for connection to the Digital Force Display.
Students adjust a load cell that bends the beam and, when connected to the optional Digital Force Display, it measures the bending force.
Strain gauges and a digital strain bridge measure the strains in the beam.
Dummy strain gauges compensate for temperature variation and balance the strain bridges.
The Operation Manual provides details of the equipment including sample experiment results.
The Operation Manual describes how to use the equipment and gives experiment procedures.
Key features:
High-quality structures Training module for students of mechanical, civil and structural engineering
Realistic and verifiable experiment results
Allows safe and practical experiments into bending stress in a beam
Optional Structures Software package for extra ‘virtual’ experiments that simulate and confirm the results from your hardware and allow extended experiments
Optional unit including Structures Software package for automatic data acquisition and virtual experiments.
