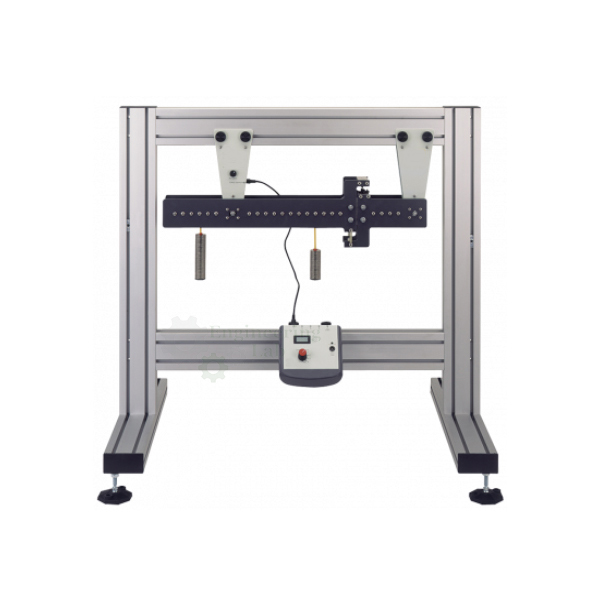

Shear Force in a Beam Apparatus
Product Code : EL-SELE-10579
Quick Answer: The Shear Force in a Beam Apparatus is a simply supported beam accessory for a Structures Test Frame, in which a pivot ‘cuts’ the beam and a moment arm bridges the cut onto a load cell so that, as loads are hung at set positions along the beam, a Digital Force Display shows the resulting bending moment force reacted at the cut.
A simply supported beam apparatus to demonstrate and investigate the bending moments and forces within a structure.
The experiment hardware is a simply supported beam ‘cut’ by a pivot.
The beam fixes to the Structures Test Frame.
Students apply loads at set positions using hangers holding various masses.
A Digital Force Display displays forces during experiments.
To stop the beam collapsing, a moment arm bridges the cut onto a load cell thus reacting (and measuring) the bending moment force.
The Operation Manual provides details of the equipment including sample experiment results.
The Operation Manual describes how to use the equipment and gives experiment procedures.
Key features:
Realistic and verifiable experiment results
High-quality structures training module for students of mechanical, civil and structural engineering
Allows safe and practical experiments into bending moments in a beam
Optional Structures Software package for extra ‘virtual’ experiments that simulate and confirm the results from your hardware and allow extended experiments
Optional unit with Structures Software package for automatic data acquisition and virtual experiment.
