Unsymmetrical Bending Apparatus
Product Code : EL-SELE-10581
Quick Answer: The Unsymmetrical Bending Apparatus uses an 80 cm angle section as a cantilever beam, fixed at one end so its cross-section can be rotated to set angular intervals and clamped with its principal axis inclined at any angle to the horizontal and vertical planes; a vertical load is applied at the free end and a 25 mm-travel dial gauge with a magnetic base measures the resulting horizontal and vertical deflection for the experimental and analytical study of unsymmetrical bending, with the apparatus supplied complete with a supporting stand and a set of weights.

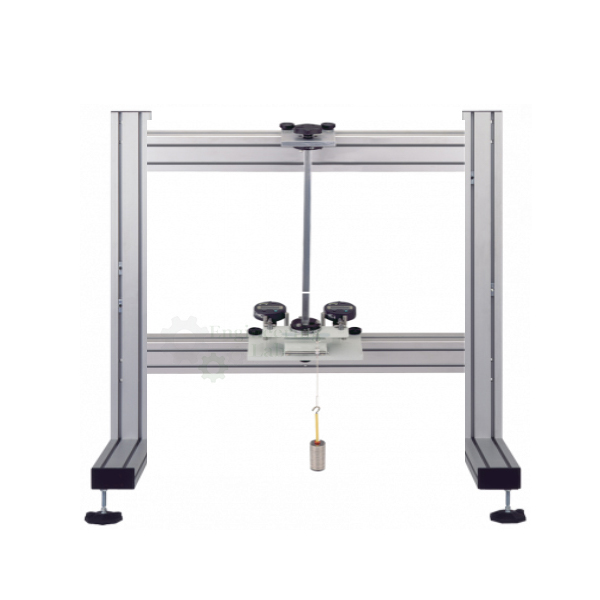

Apparatus consists of an angle for size 1″ x 1″ x 1/8″ or in equivalents metric units of length 80cm is tied as a cantilever beam.
The beam is fixed at one end such that the rotation of 450 intervals can be given and clamped such tat the principal axis of its cross-section may be inclined at any angle with the horizontal and vertical planes.
Also arrangement is provided to apply vertical load at the free end of the cantilever and to measure horizontal and vertical deflection of the free end.
Experimental and analytical study of deflections for unsymmetrical bending of a cantilever beam.
A dial gauged with 25 mm travel (with magnetic is supplied with the apparatus).
Apparatus is supplied completer with a supporting stand and a set of weights base.
